X98K 8K OTT media streamer with Rockchip Quad Core RK3528 Cortex A53 CPU Mali-450 GPU 2GB 4GB DDR3 16GB 32GB storage Flash 2.4G 5G WiFi 6 BT 5.0 USB 3.0 100M Lan H.265 8K decoding android 13 media streamer.
X98K Product Specifications:
Hardware: |
||||
| CPU | Chipset | RK3528 | ||
| Architecture | Quad Core ARM Cortex A53 | |||
| GPU | Chipset | ARM Mali-450 GPU | ||
| Architecture | OpenGL ES 1.1/2.0 and OpenVG 1.1 support | |||
| RAM | Capacity | 2GB /4GB | ||
| ROM | Capacity | 16GB /32GB | ||
| External storage | USB Storage Devices | Supported | ||
| Micro SD card | Supported | |||
Software: |
||||
| Operating system | OS Version | Android 13 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder | ||
| H.264/AVC BP/MP/HP profile @ level 5.1, H.264/AVC MVC, up to 4Kx2K @ 60fps | ||||
| H.265/HEVC Main/Main10 profile @ level 5.1 High-tier, up to 4Kx2K @ 60fps | ||||
| AVS2 4KX2K @60fps | ||||
| MPEG-1, Main profile, up to 1080P @ 60fps | ||||
| MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps | ||||
| MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps | ||||
| AVS, Jizhun profile @ level 6.0, up to 1080P @ 60fps | ||||
| AVS-P16 (AVS+), up to 1080P @ 60fps | ||||
| H.263, up to 576P @ 60fps | ||||
| VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps | ||||
| Video Encoder | ||||
| Support video encoder for H.264, HP@level4.2 | ||||
| H.264 maximum frame rate is up to 1920×1080 @60fps | ||||
| Capable of encoding HEVC Main Profile @ L4.1 High-tier | ||||
| H.265 resolution and frame rate are up to 1920×1080 @60fps | ||||
| JPEG encoder included | ||||
| Audio | Serial Audio Interface | |||
| SPDIF | ||||
| Audio CODEC | ||||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
Network Service: |
||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac / ax | ||
| Frequency | Support 2.4GHz /5GHz WiFi 6 | |||
| Antenna Type | Single antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

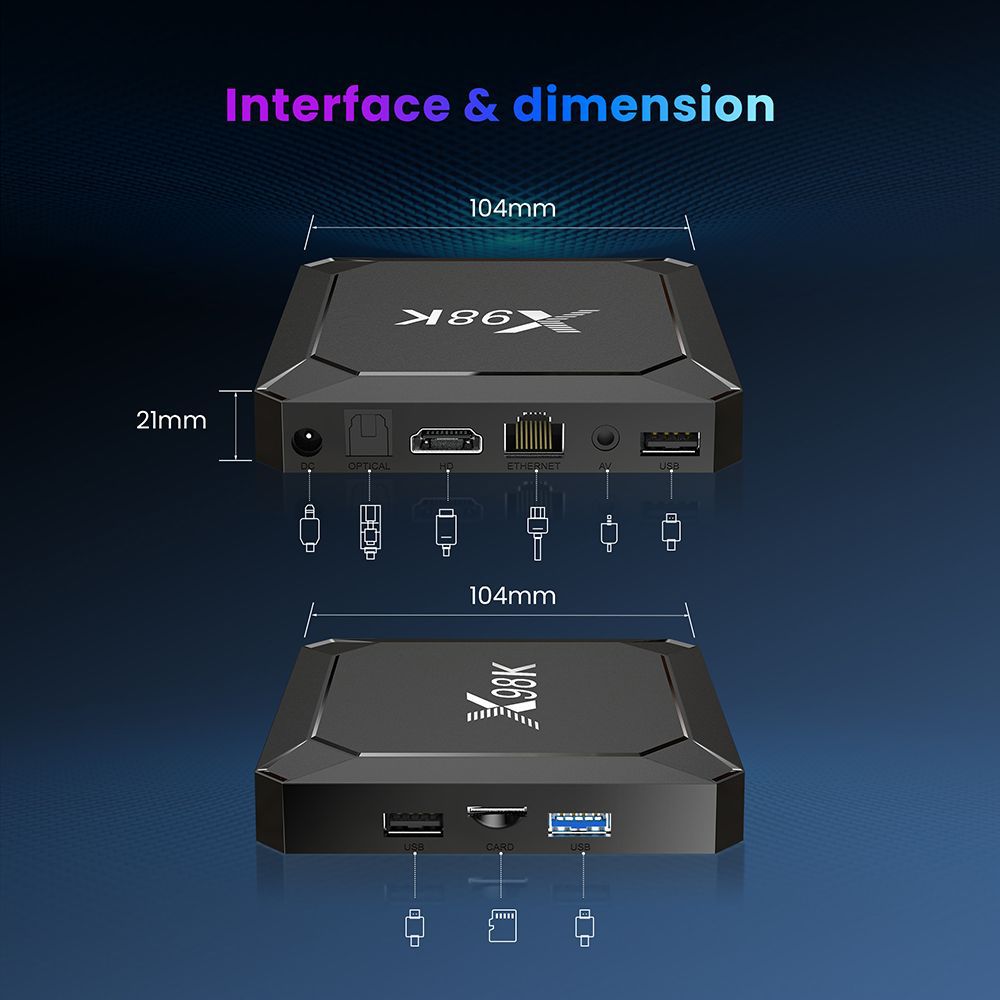

| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HD | 4K*2K UHD Output, HD 1.4/2.X | ||
| IR Reciver | On board | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||

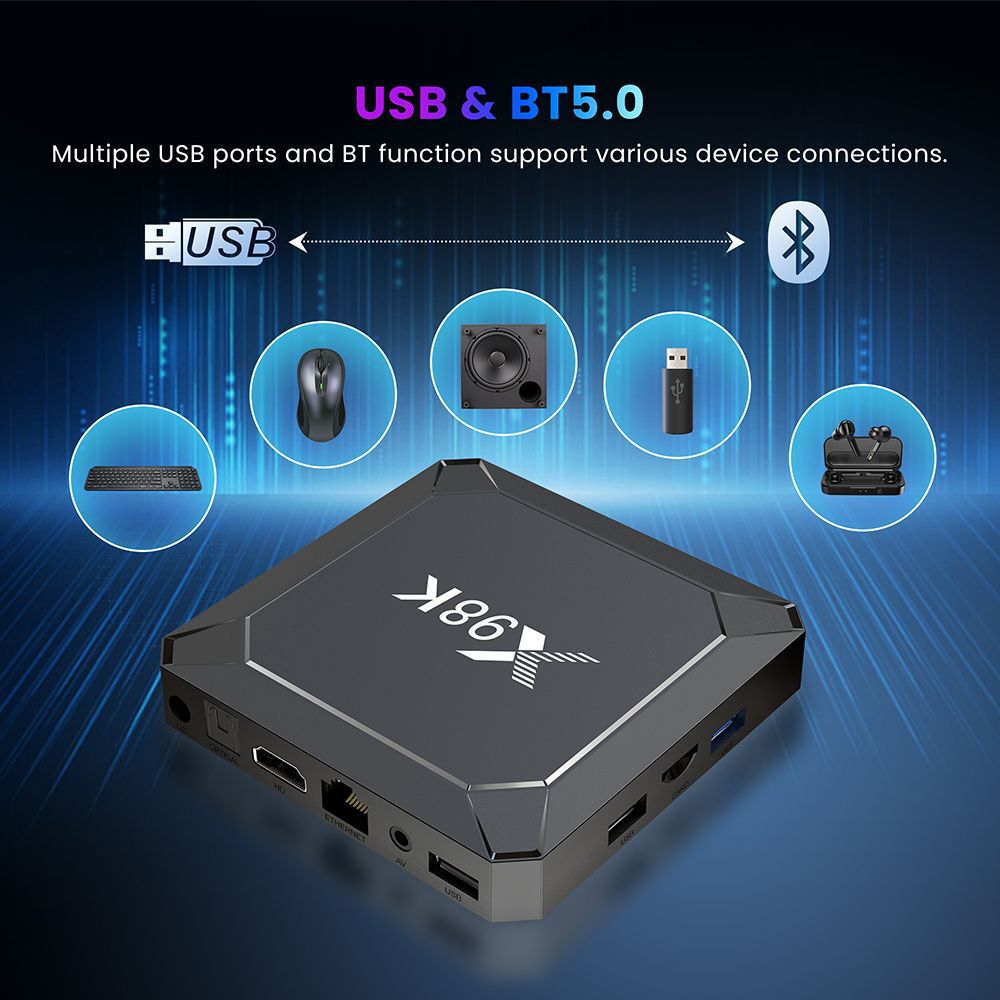

| USB port | USB host | USB3.0 *1 USB2.0 *2 |
||
| Ethernet | Ethernet | 100M LAN (1000M customized) | ||

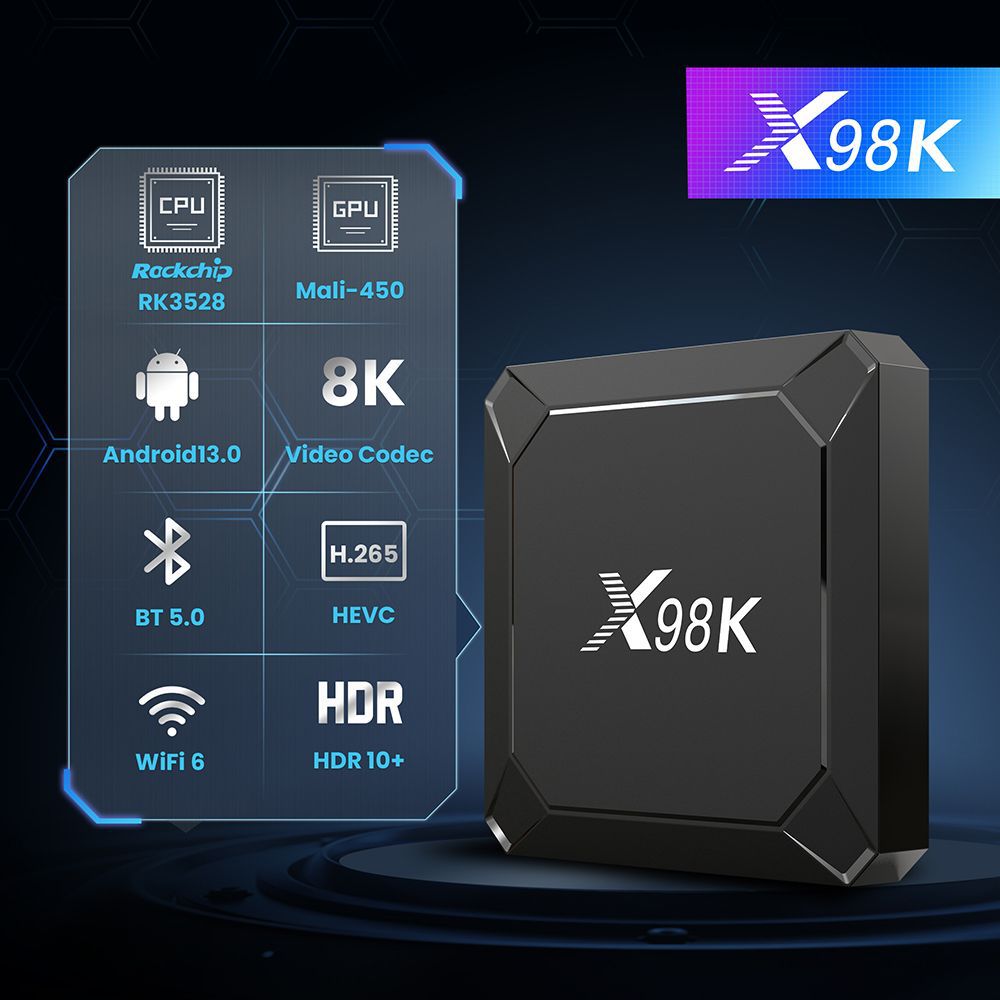

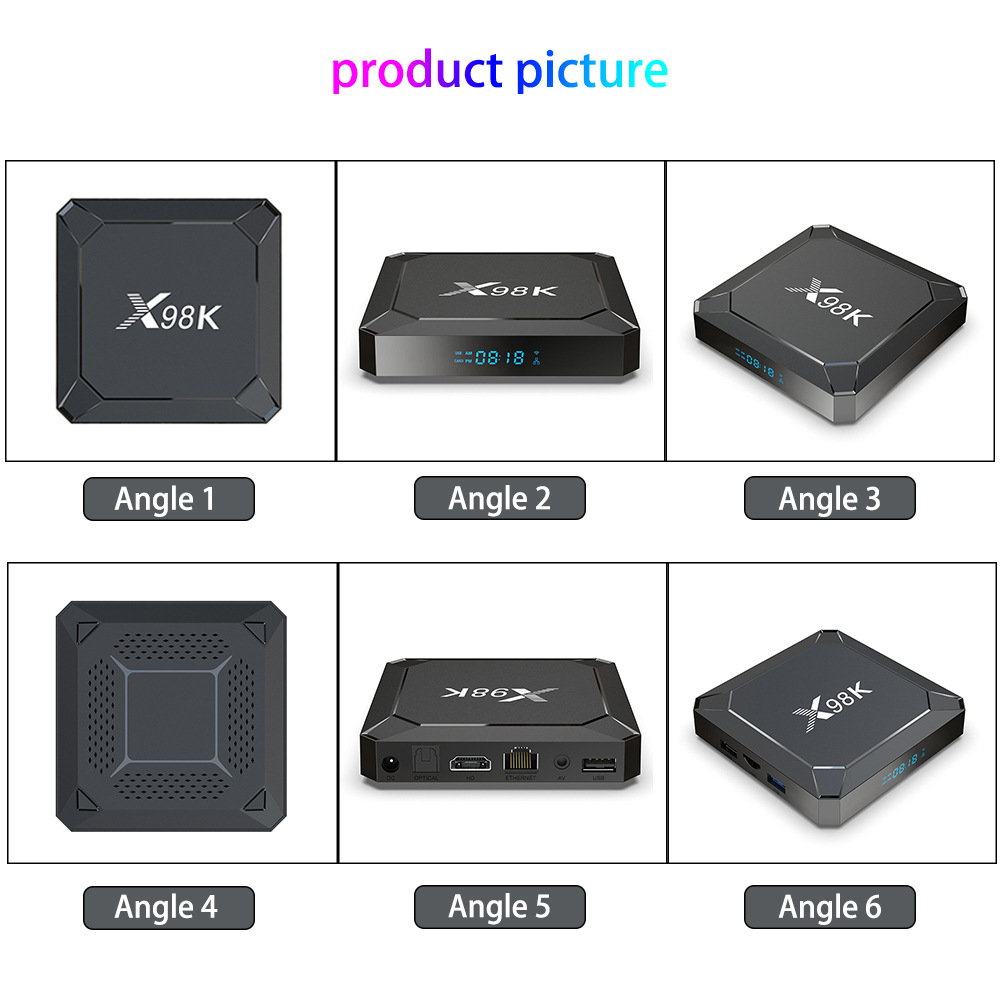

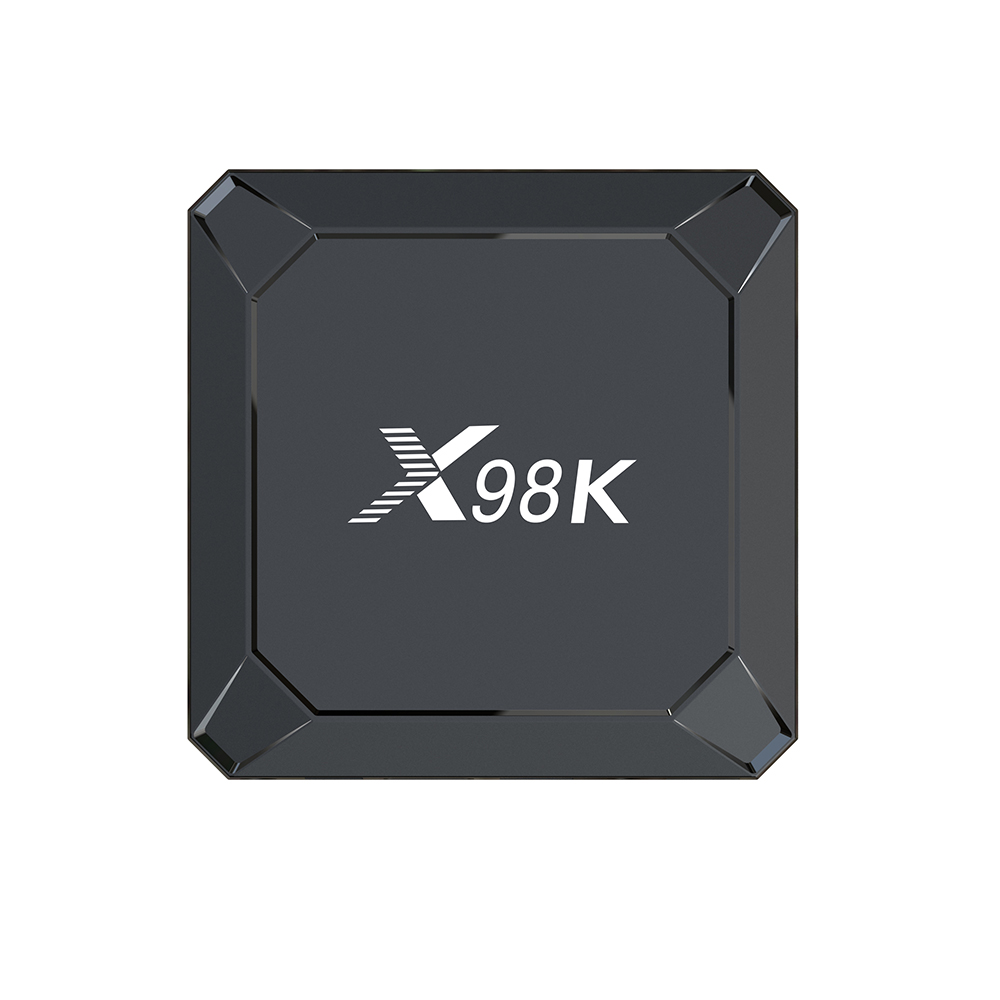

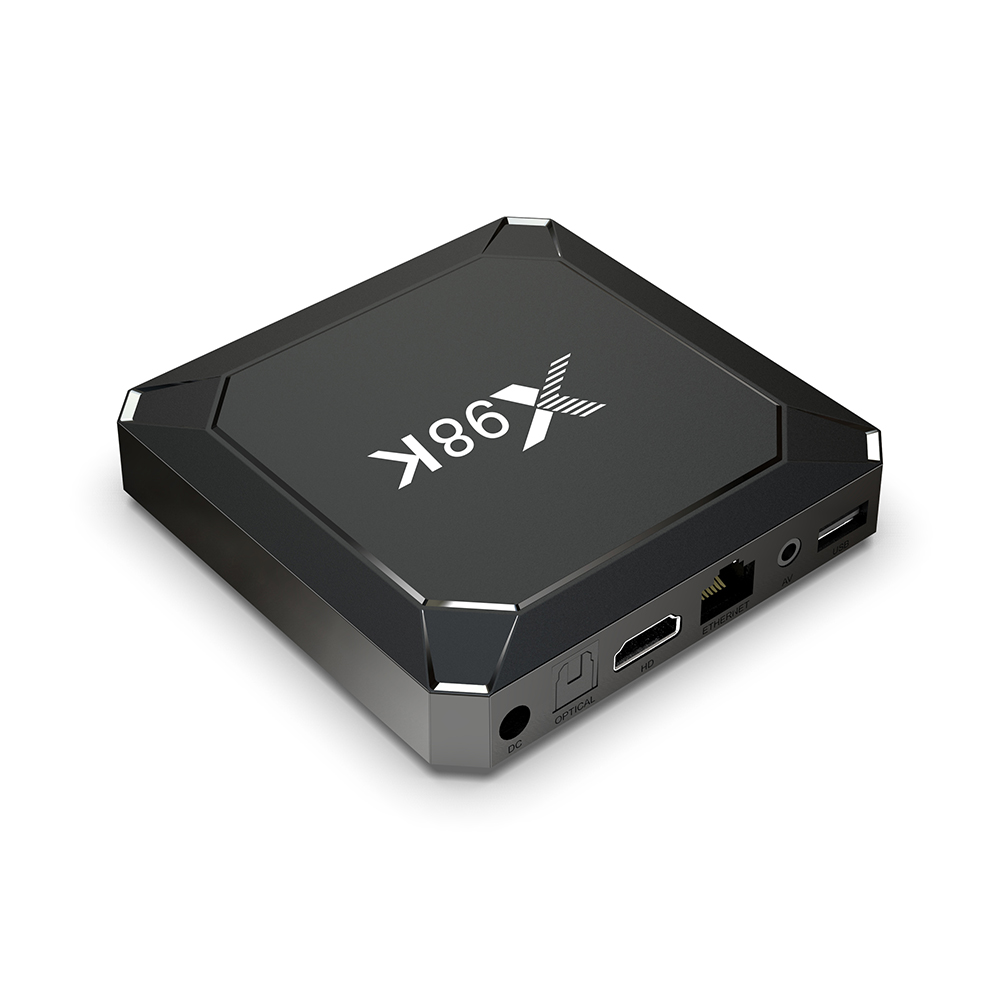

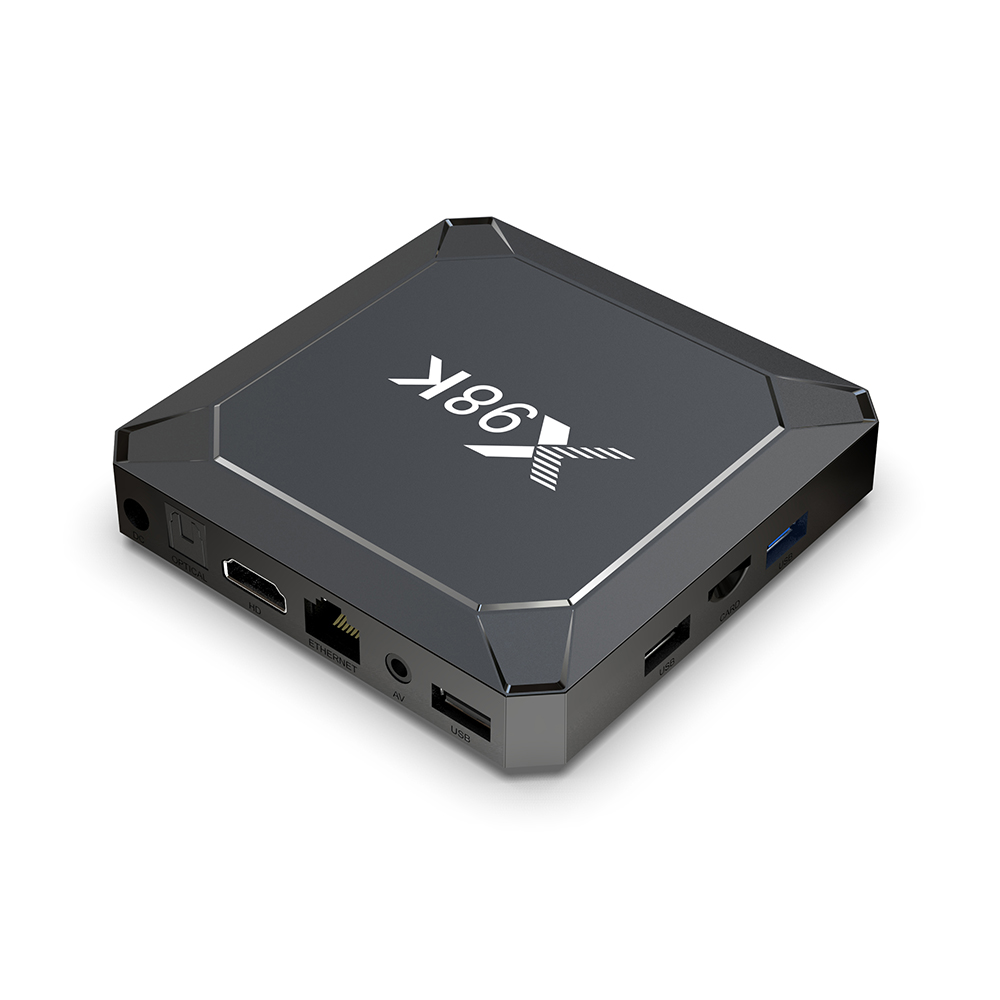

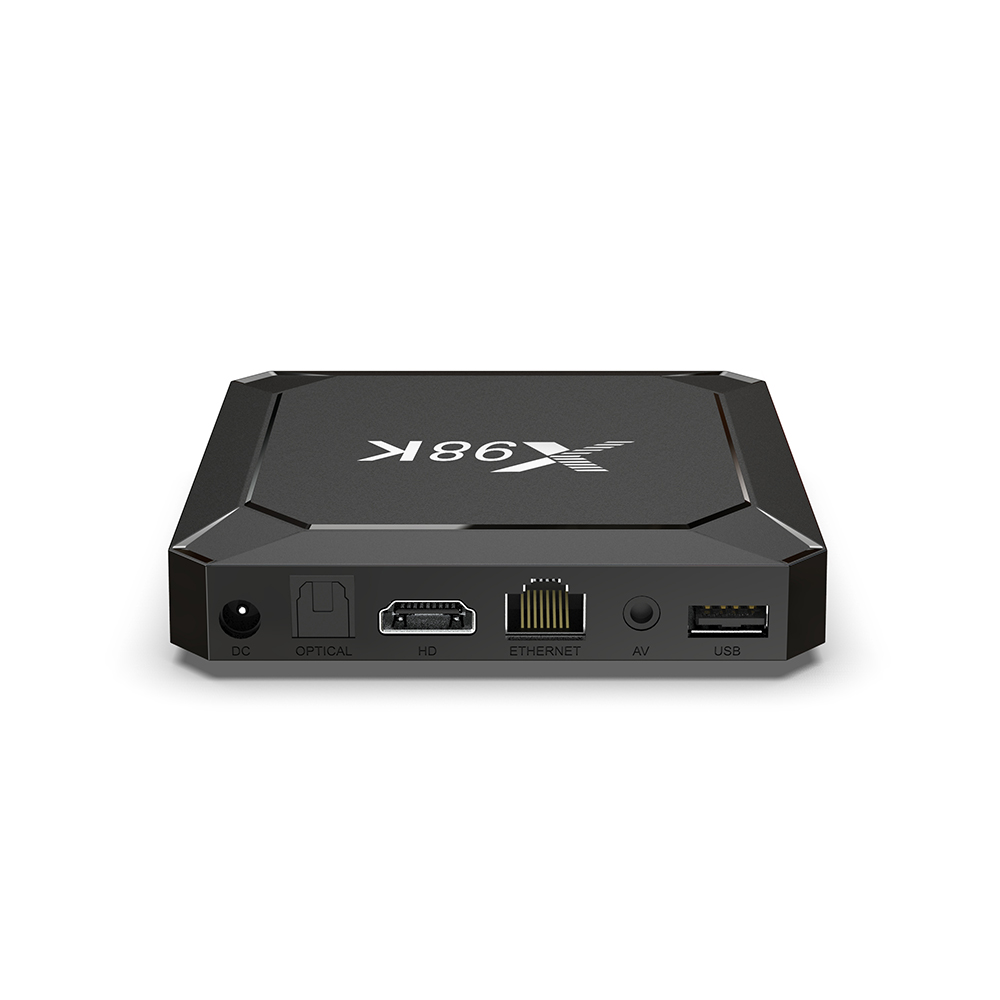

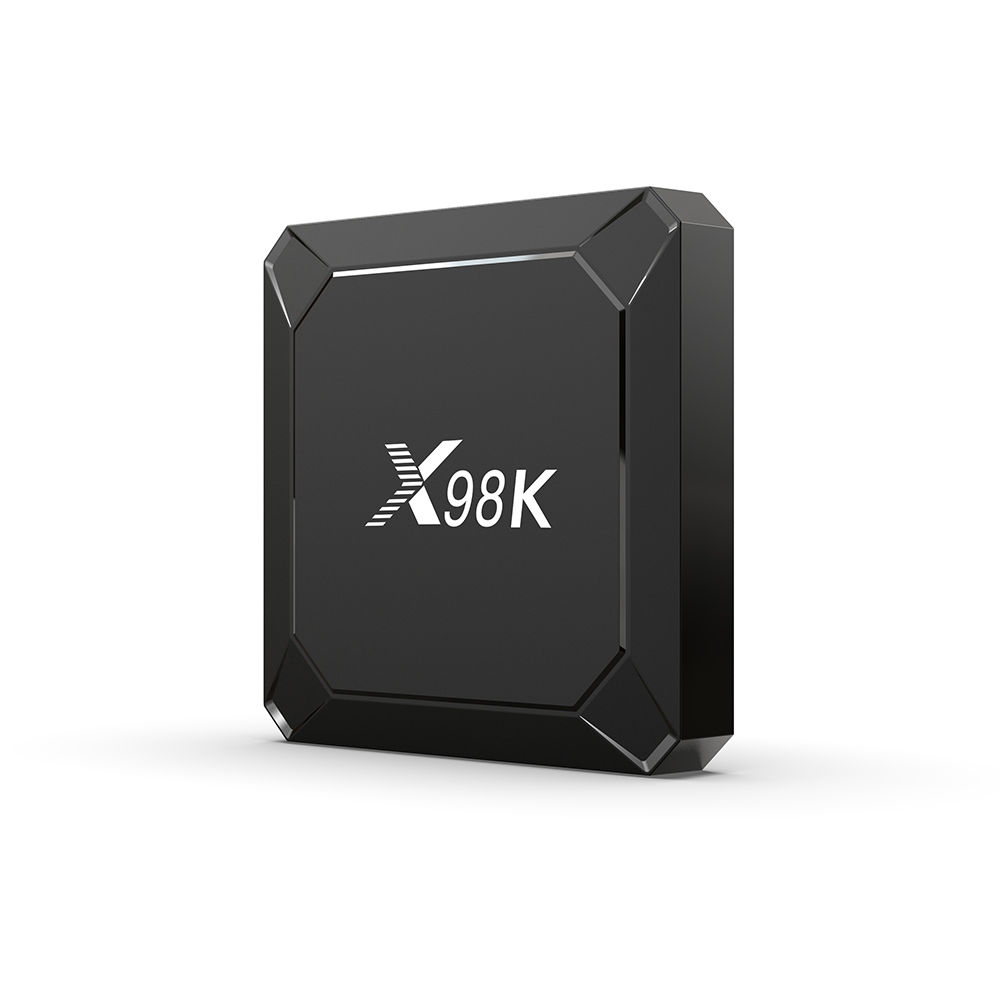

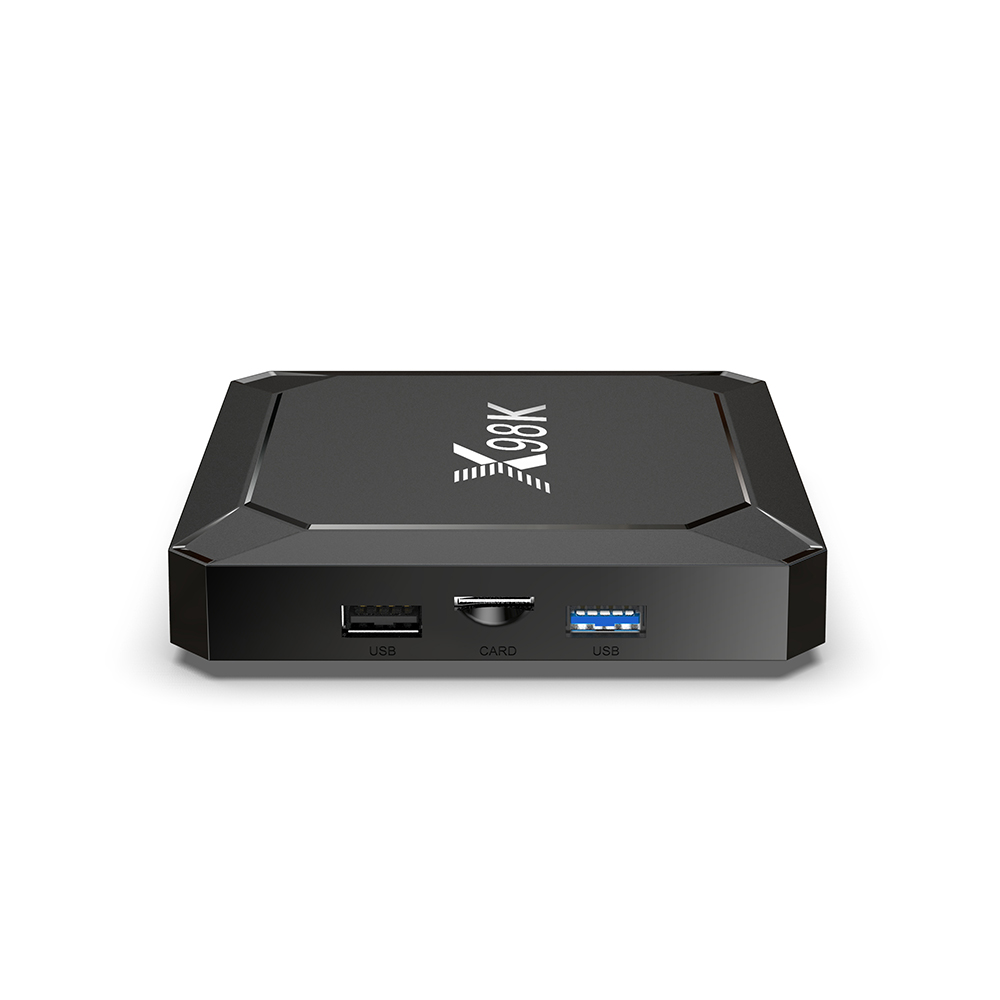

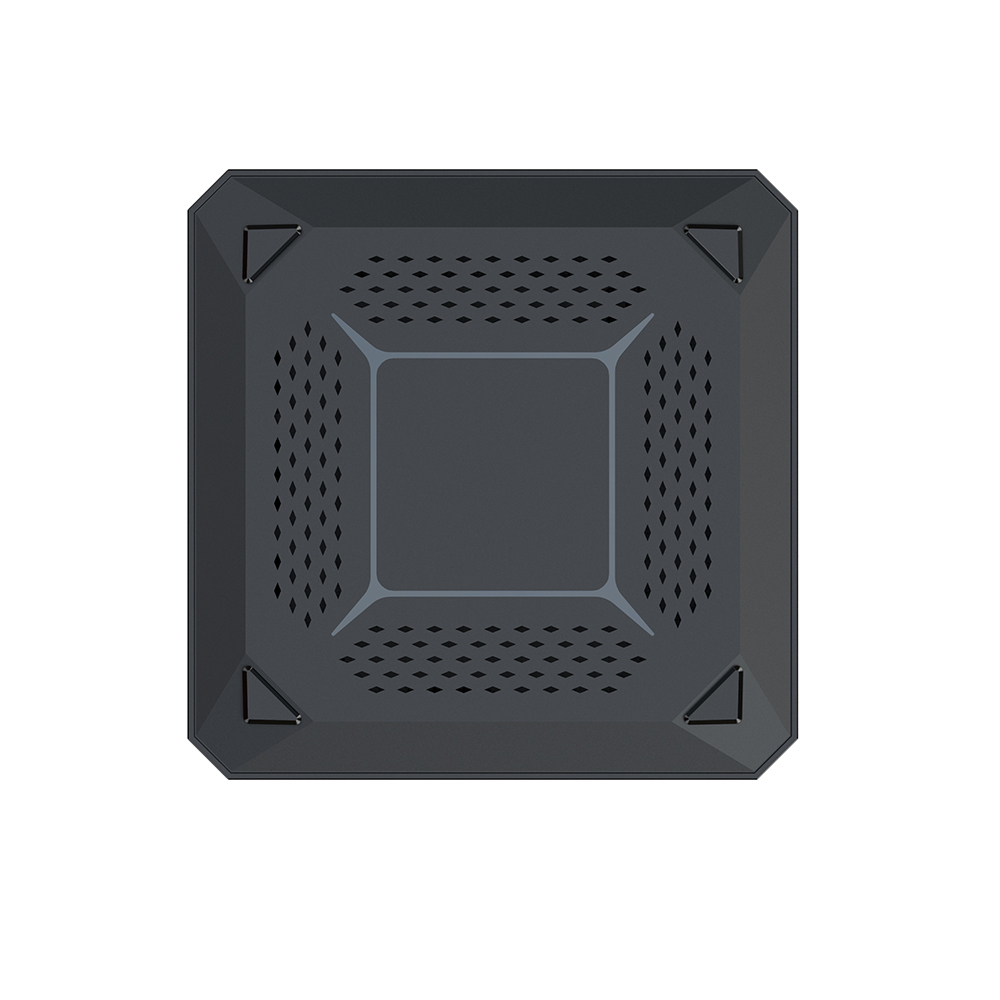

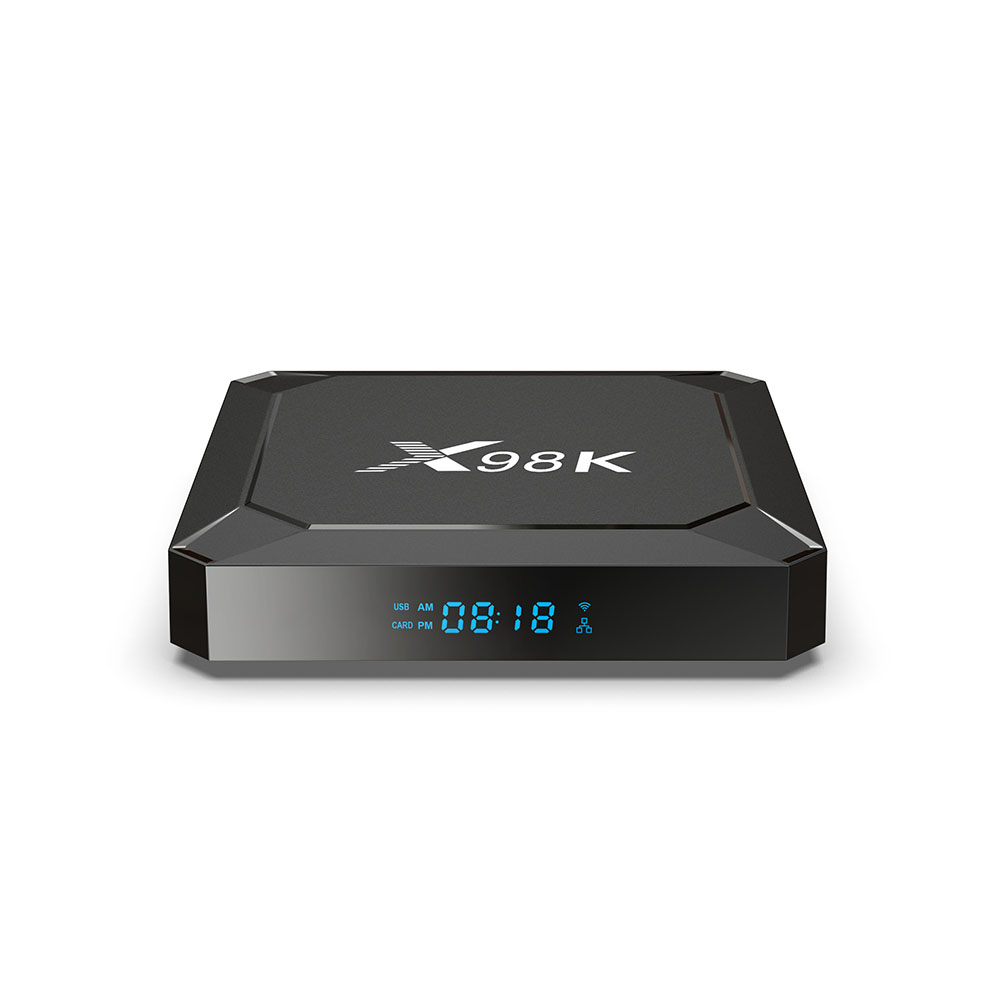

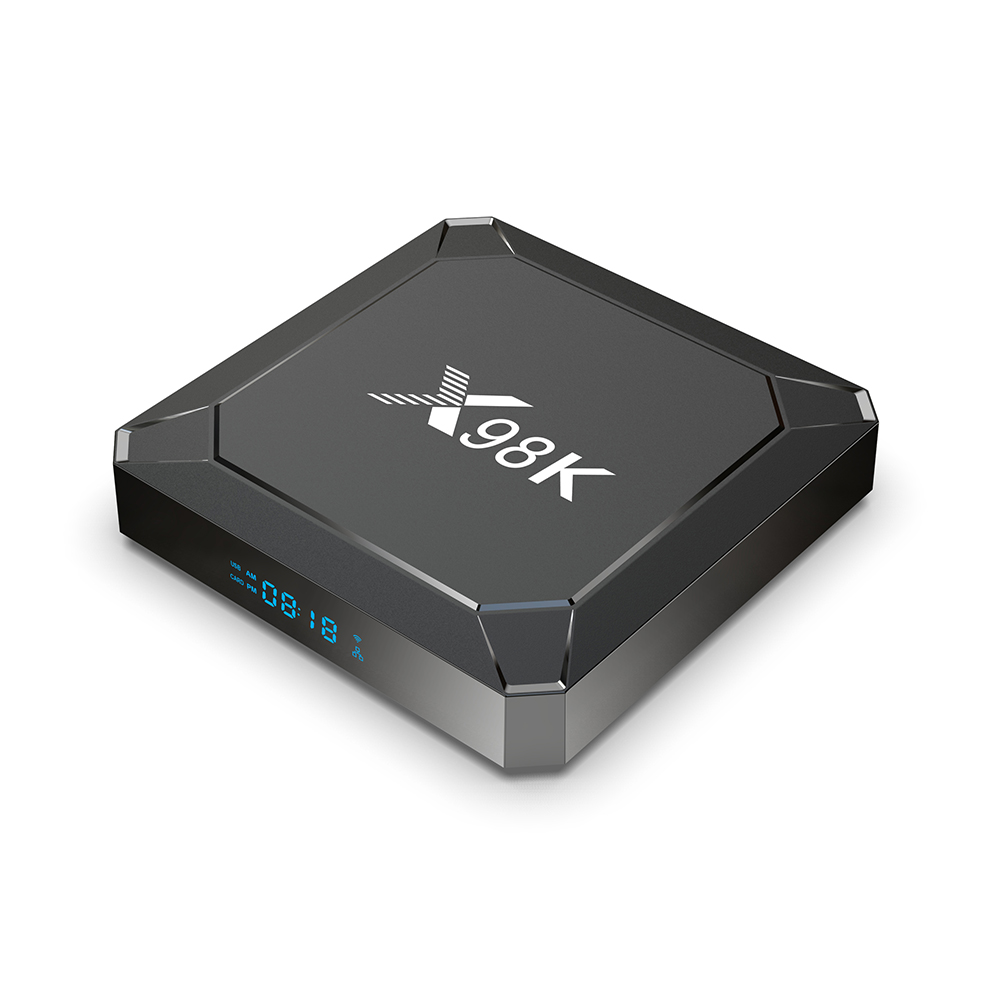

Product Picture:

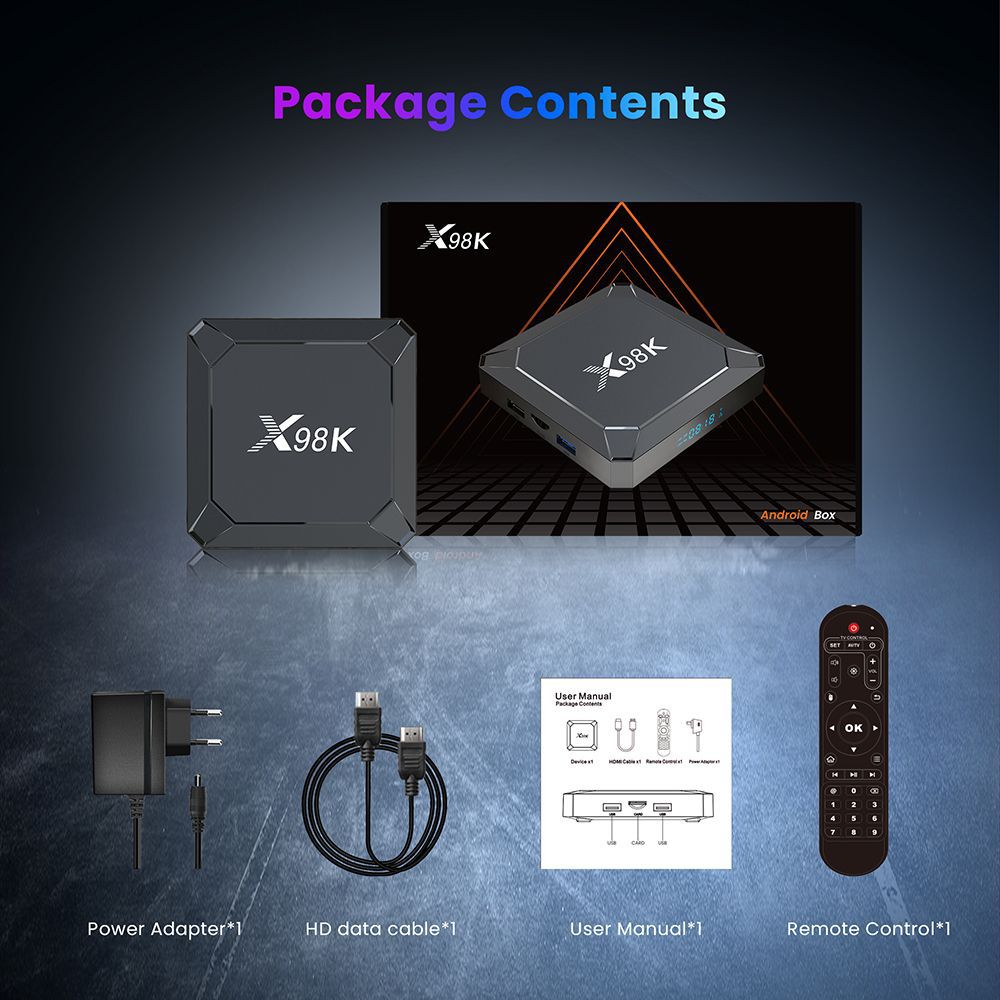

Product Packing List:
