8K X96 Ultra streaming smart box with Amlogic S905X4 Cortex A55 Quad Core 64 bit Chip Mali G31 MP2 GPU 4GB DDR4 32GB 64GB eMMC storage 2.4G 5G 802.11 ac dual band WiFi Bluetooth 4.X 8K 24fps HDR 10+ AV1 video decoding android 11 OS streaming smart box.
Product Specifications:
| Hardware: | ||||

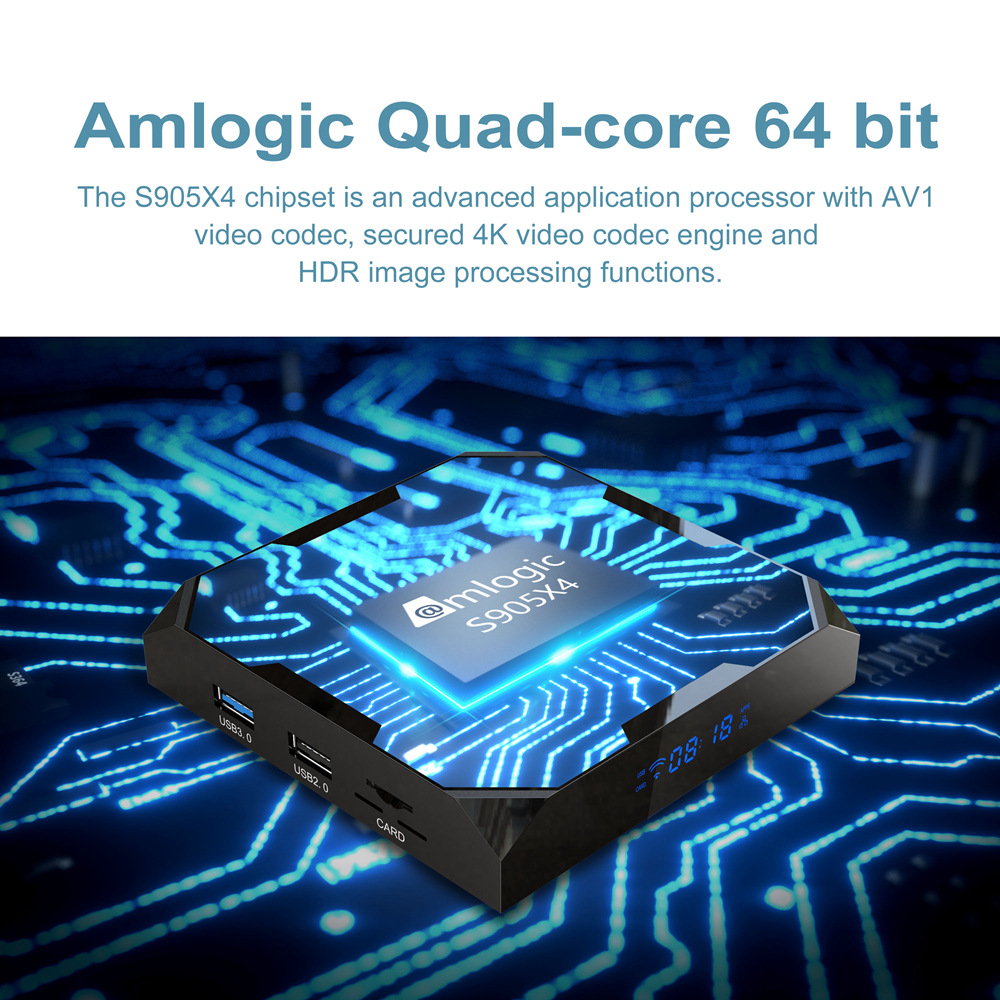

| CPU | Chipset | Amlogic S905X4 | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM Mali-G31 MP2 | ||
| Architecture | OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support | |||
| RAM | Capacity | 4GB DDR4 | ||
| ROM | Capacity | 32GB /64GB | ||
| External storage | USB Storage Devices | USB2.0, USB3.0 Support | ||
| Micro SD card | Supported | |||
| Software: | ||||
| Operating system | OS Version | Android 11 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P@60fps |
||
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||
| Video/Picture Decoding | ||||
| VP9 Profile-2 up to 8Kx4K@24 fps | ||||
| H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps | ||||
| AVS2-P2 Profile up to 8Kx4K@24 fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172 | ||||
| RealVideo 8/9/10 up to 1080P@60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918 | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
| Network service: | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac | ||
| Frequency | 2.4G and 5G dual band WiFi | |||
| Antenna Type | Inside | |||

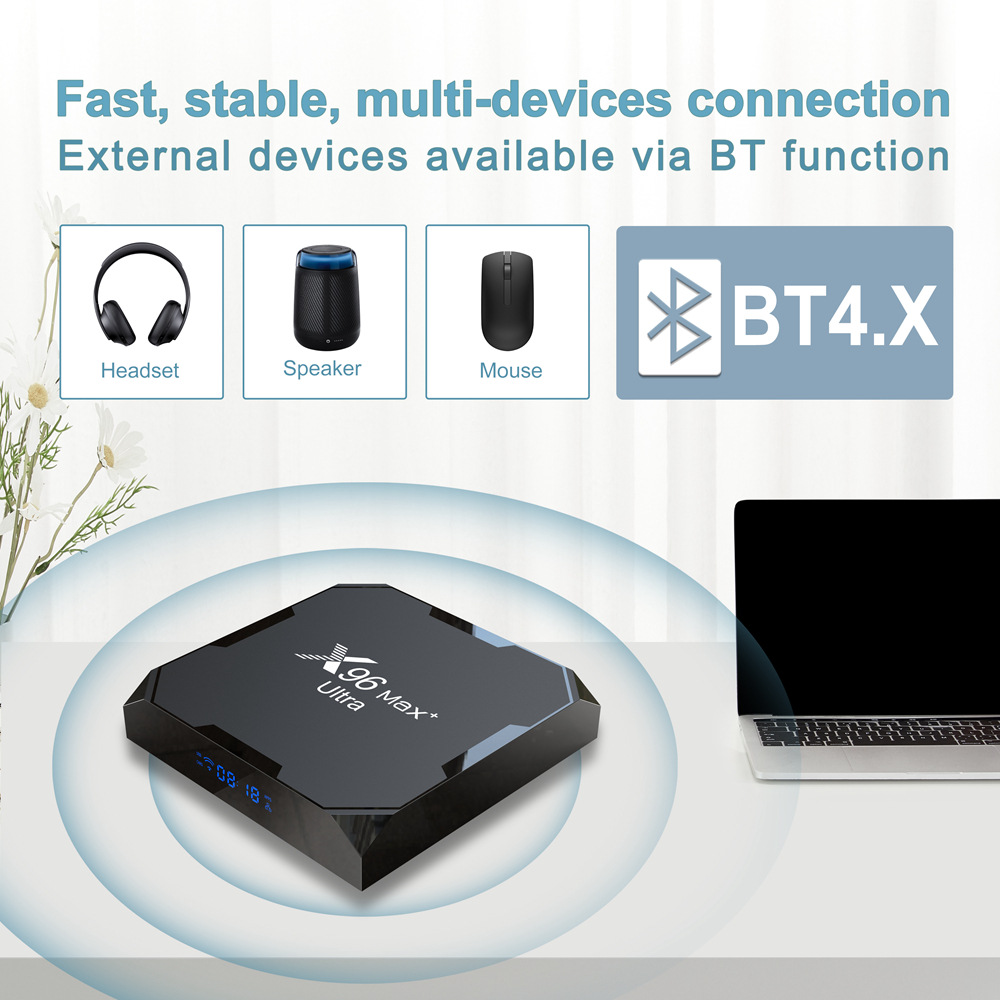

| Bluetooth | Bluetooth | Support BT4.X | ||

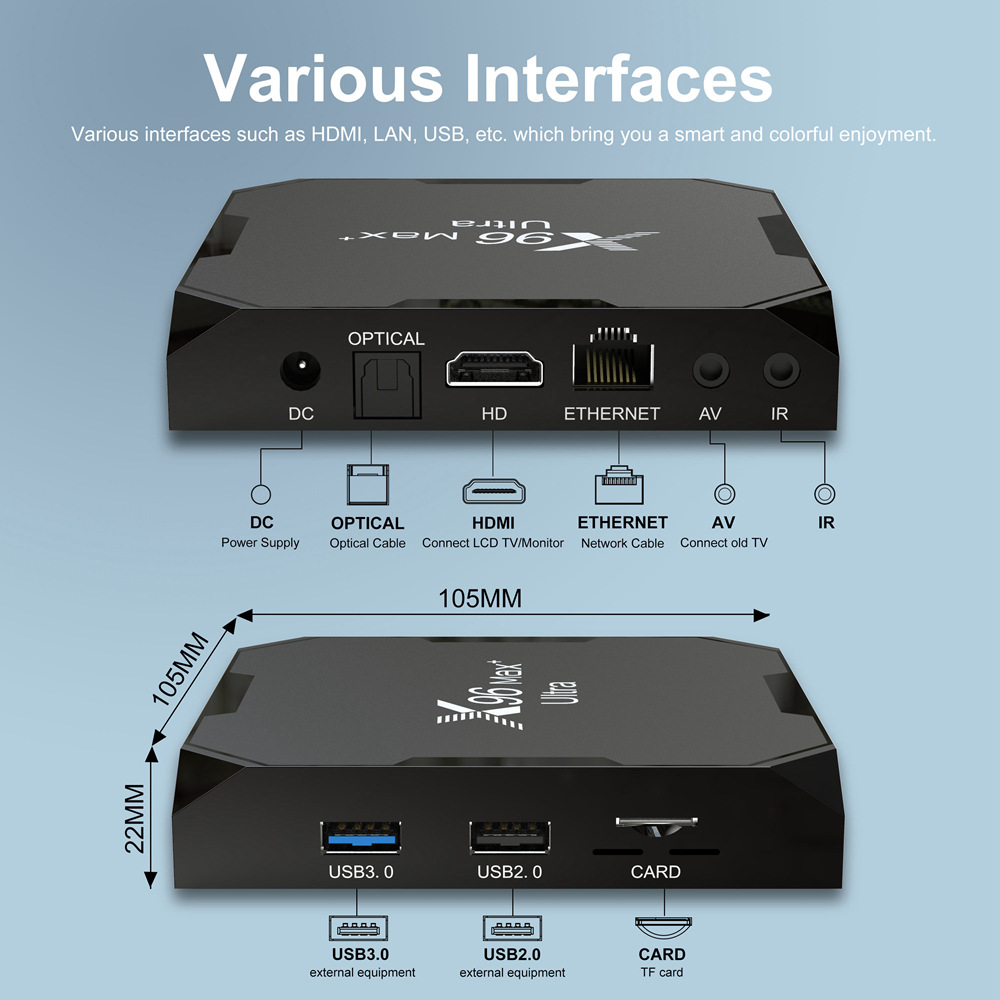

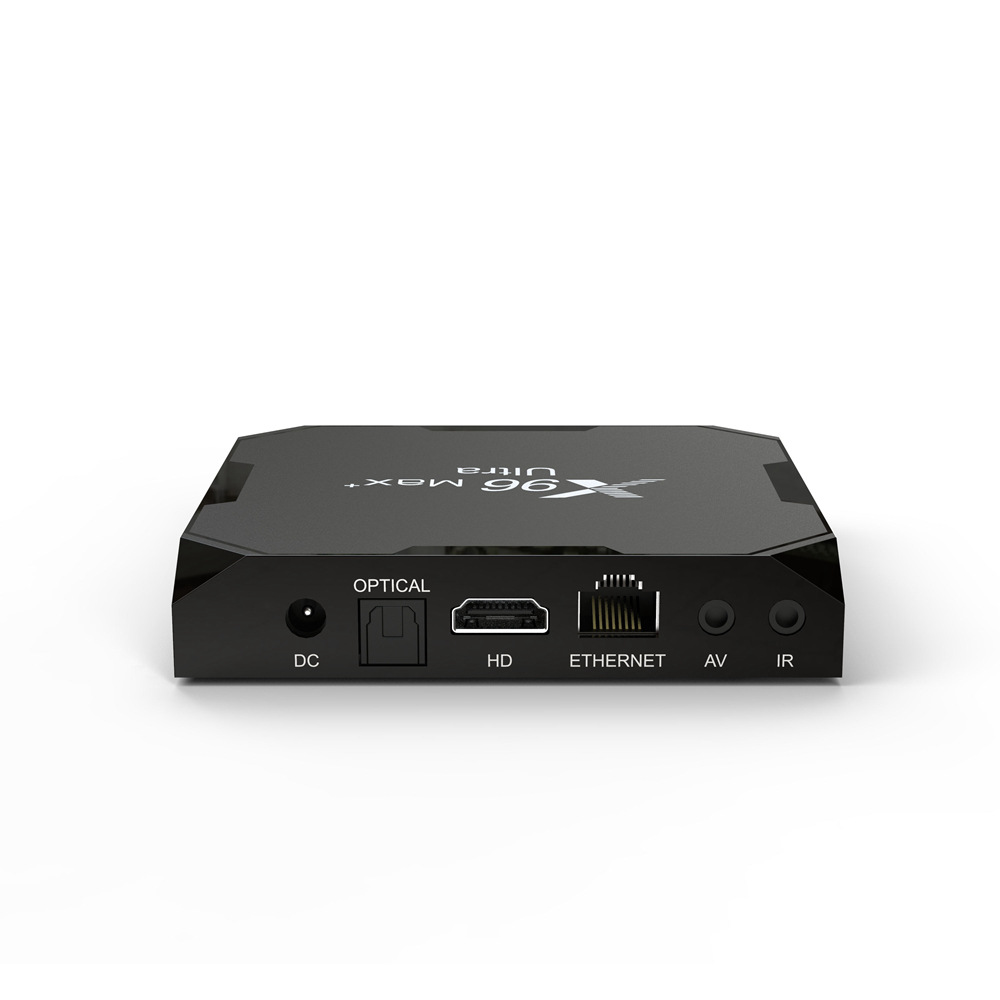

| Streaming Smart Box Interface: | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 1.4/2.0 | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | 1*USB3.0 1*USB2.0 normal type | ||
| Ethernet | Ethernet | 100M Ethernet | ||

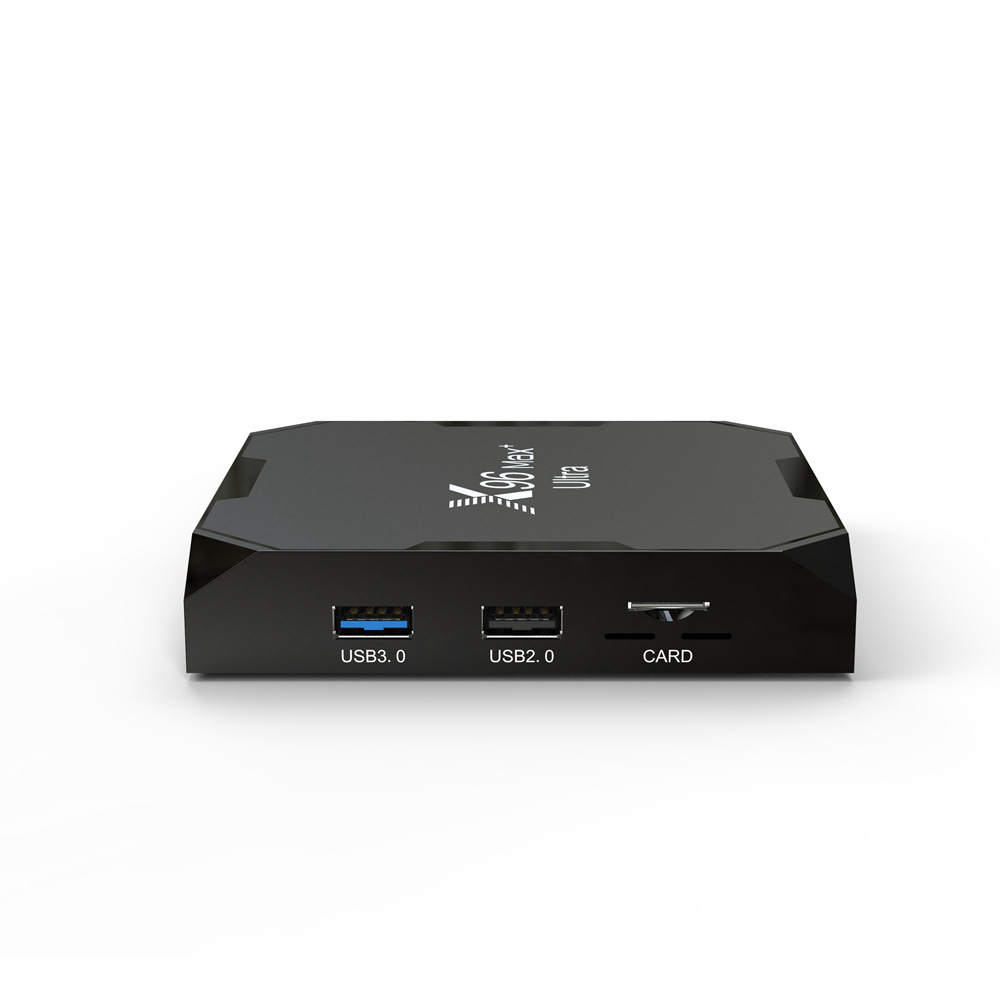

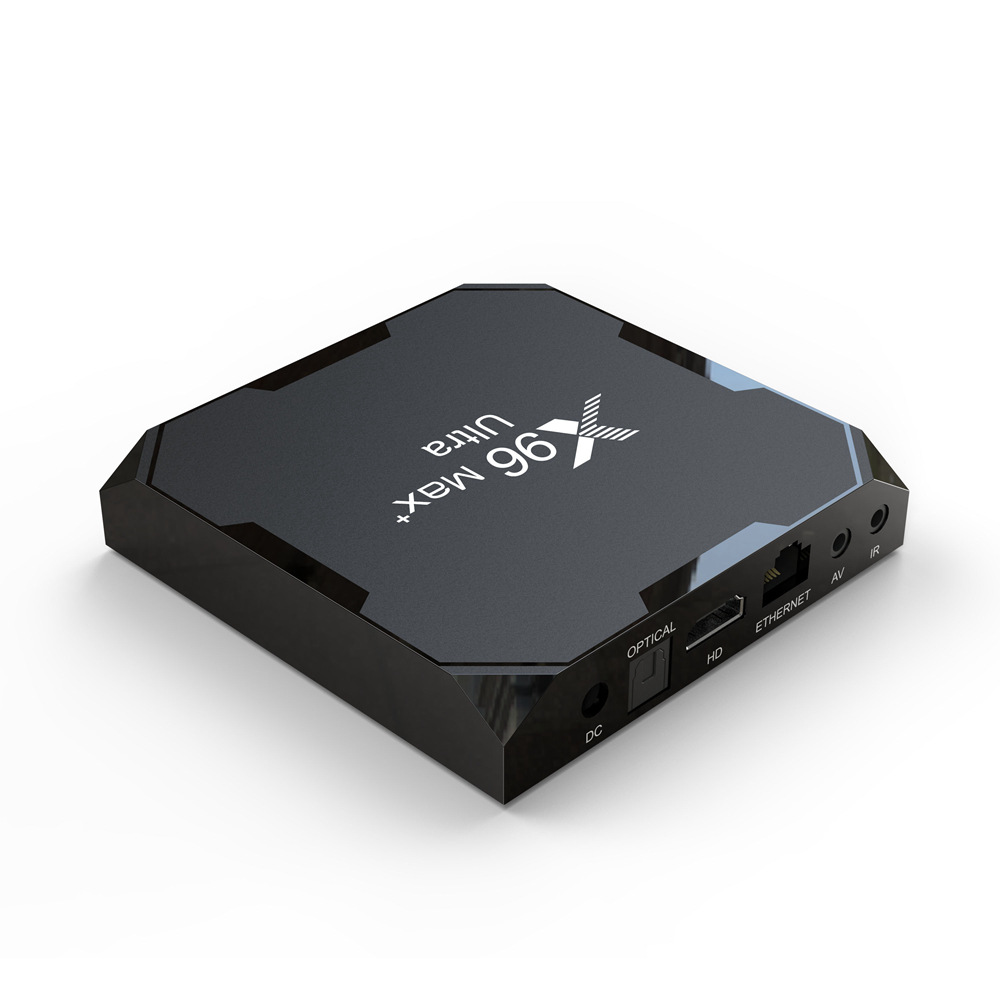

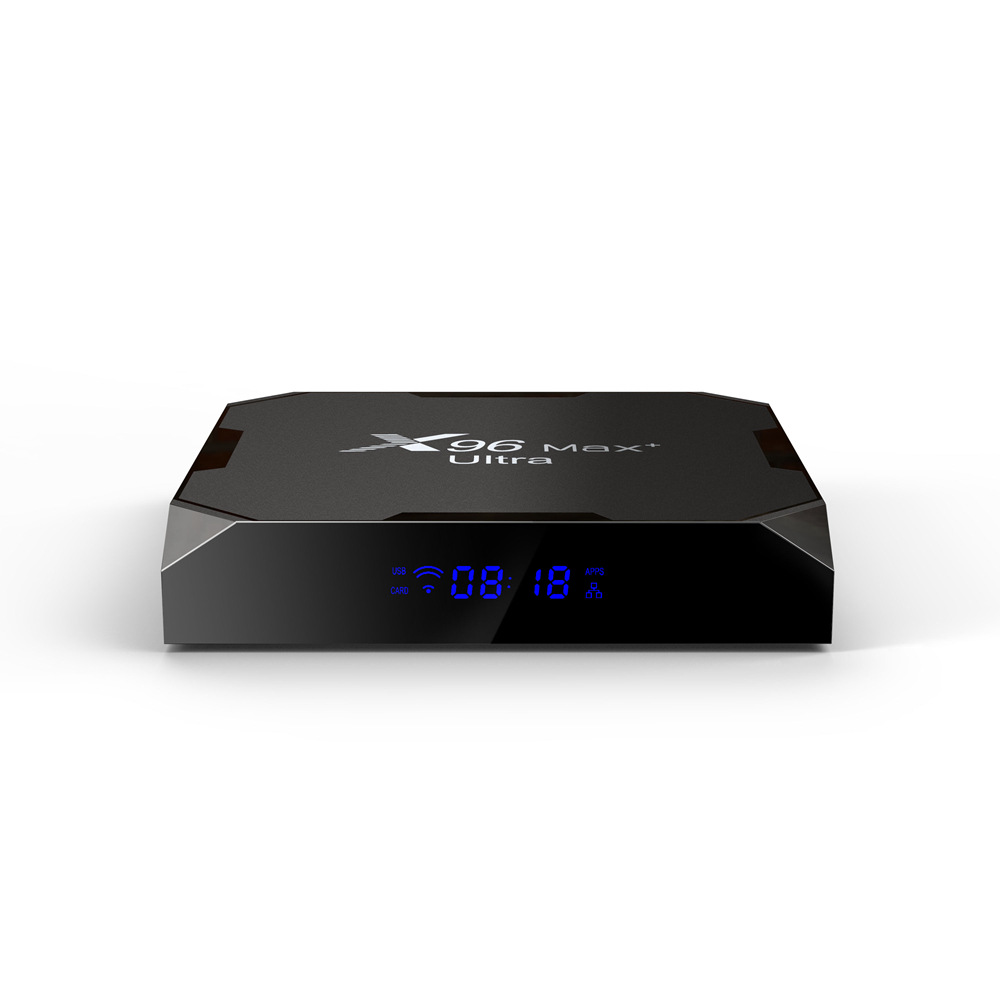

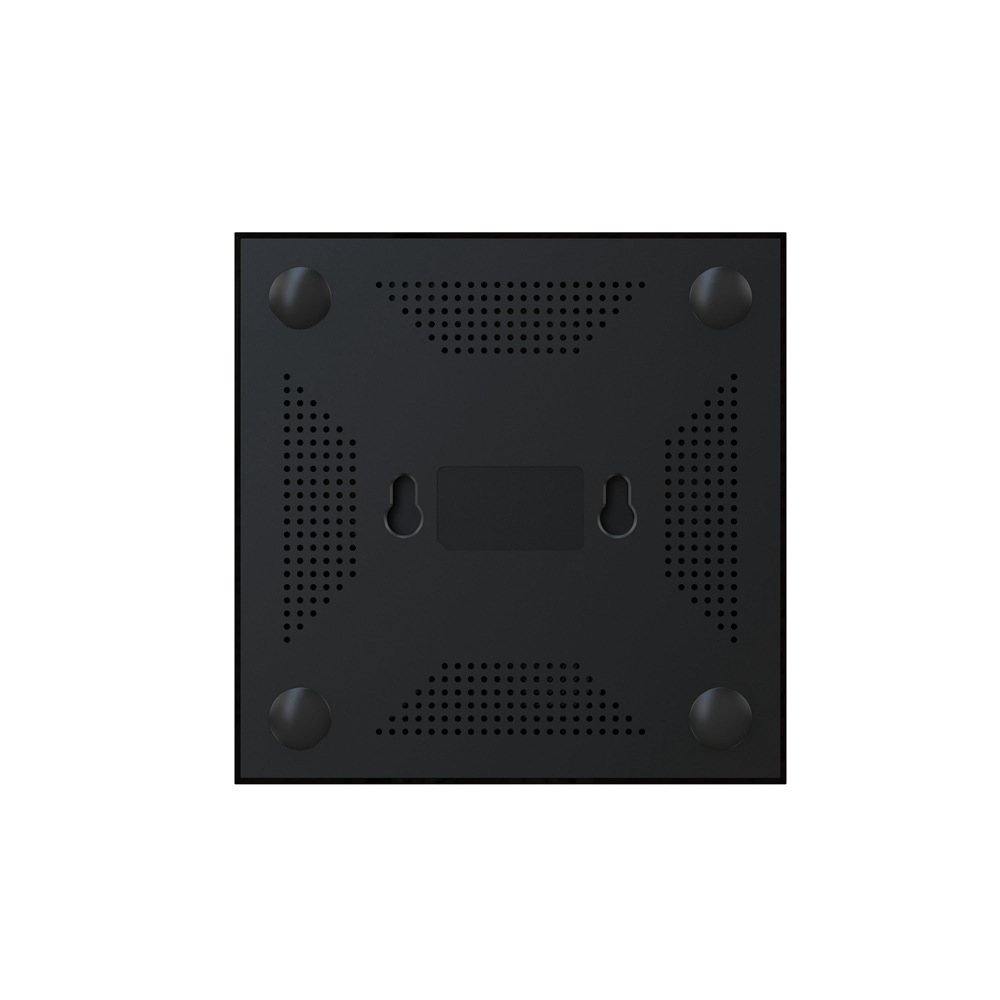

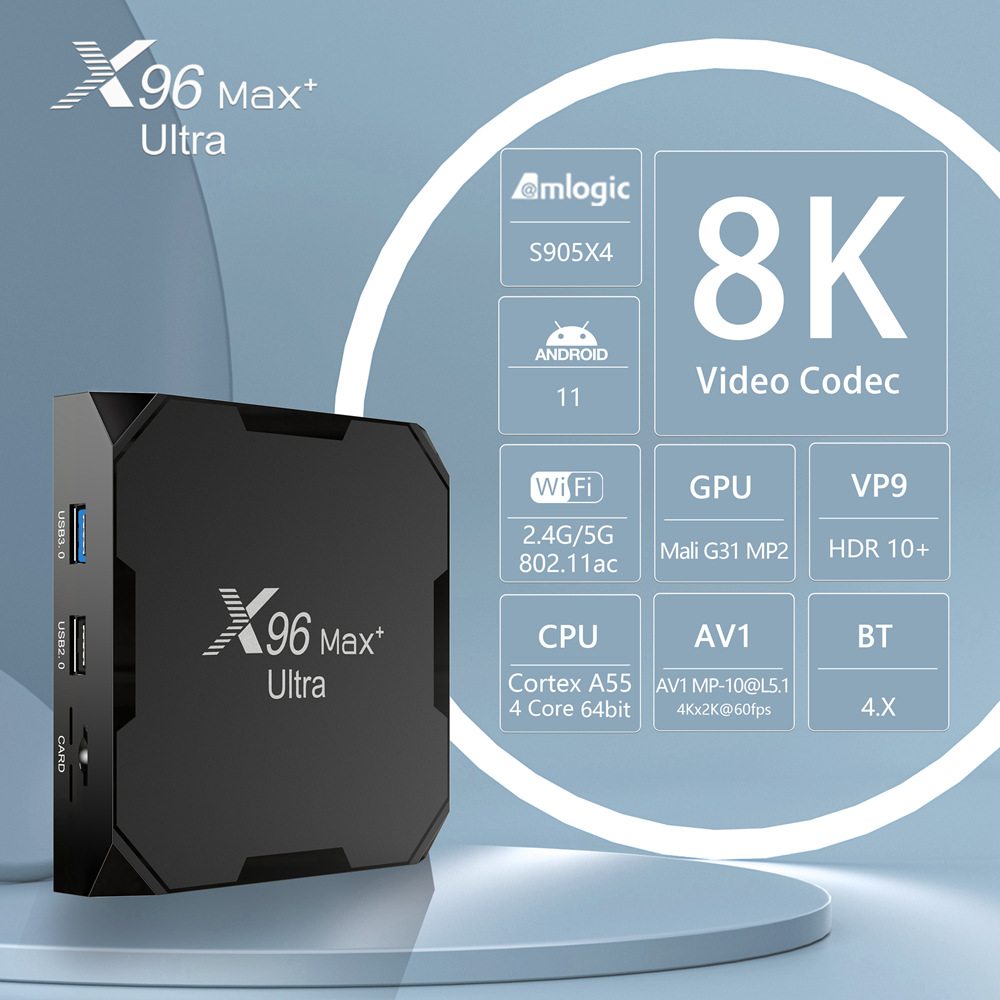

X96 Ultra Product Pictures:

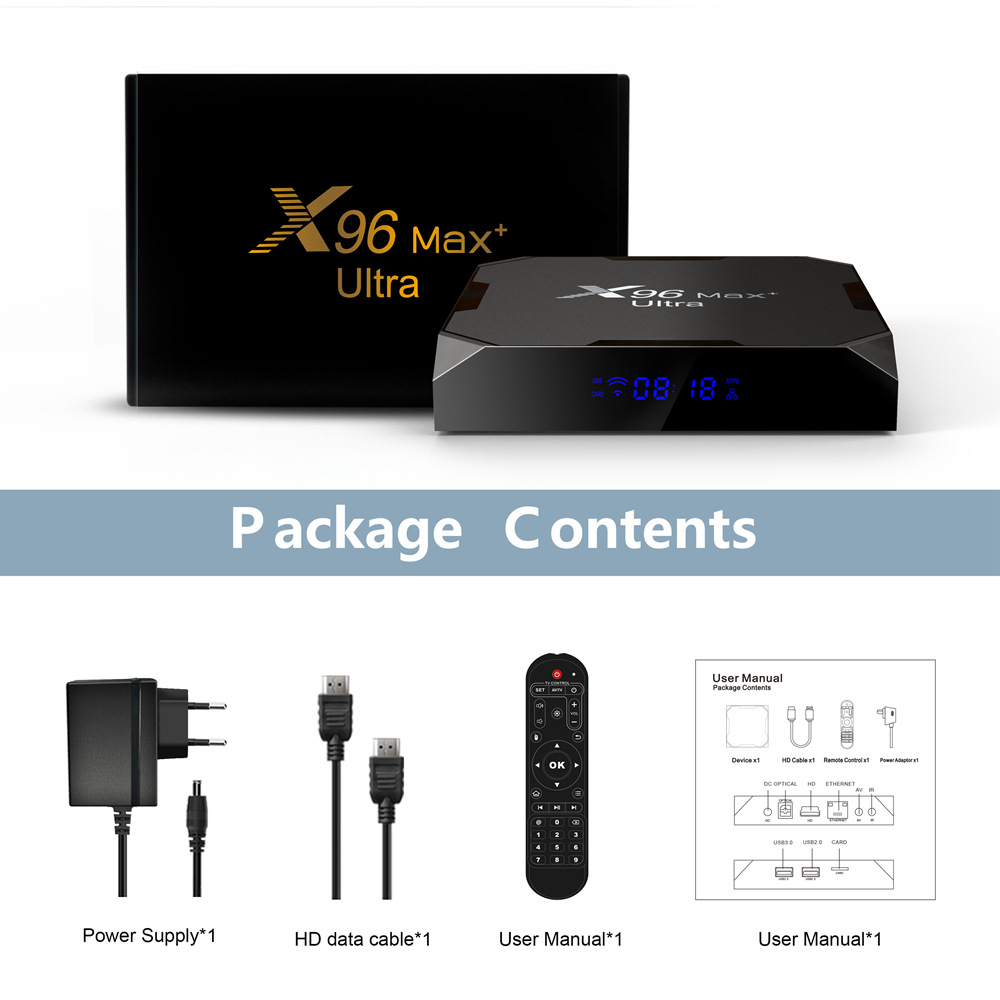

Package Contents of Streaming Smart Box:
