MECOOL KT2 DVBT2 android TV box with Amlogic S905Y4-B Quad Core CPU Mali G31 MP2 GPU 2.4G 5G 2T2R WiFi Bluetooth 5.0 support DVB T2/T/C AV1 4K 60fps decoding android 12 ATV OS TV box.
KT2 DVBT2 Android TV Box Specifications:
| Hardware Specifications | ||||
| CPU | Amlogic S905Y4-B, Quad-core ARM Cortex A35 | |||
| GPU | 3D GPU with ARM Mali-G31 GPU MP2 | |||
| RAM | 2GB | |||
| ROM | 32GB | |||
| WiFi | Built-in 2.4G/5G, 2T2R WiFi5 with IEEE 802.11 b/g/n/ac | |||
| Bluetooth | BT5.0 | |||
| LAN Ethernet | 10/100M | |||
| LED Indicator | Power ON :White; Standby :Red | |||
| DVB | Support DVB T2/T/C | |||
| Main Features | ||||
| OS | Android 12.0 ATV OS | |||
| Video decorder | Hardware decoders AV1 MP-10&L5.1 up to 4Kx2K&60fps VP9 Profile-2 up to 4Kx2K&60fps H.265 HEVC MP-10&L5.1 up to 4Kx2K&60fps H.264 AVC HP&L5.1 up to 4Kx2K&30fps MPEG-4 ASP&L5 up to 1080P&60fps WMV/VC-1 SP/MP/AP up to 1080P&60fps MPEG-2 MP/HL up to 1080P&60fps (ISO-13818) |
|||
| Video encorder | Video/Picture Encoding – Independent JPEG and H.264 encoder with configurable performance/bit-rate – JPEG image encoding – H.265/H.264 video encoding up to 1080P&60fps with low latency |
|||
| HDR | Supports HDR10+, HDR10, HLG and Technicolor HDR processing | |||
| 3D Graphics | ARM-G31 MP2 GPU – 4-wide warps, dual texture pipe, 2x 4-wide execution engines (EE) – Concurrent multi-core processing – OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support |
|||
| Decoder format | HD MPEG1/2/4,H.265/H.264/HEVC , WMV ,AV1 MP-10,VP9 Profile-2,HD AVC/VC-1,RM/RMVB,Xvid,RealVideo8/9/10 | |||
| Media format | Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |||
| Music format | Supports MP3, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | |||
| Photo format | HD JPEG, BMP, GIF, PNG, TIFF | |||
| Network Function | Chormecas, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. | |||
| Language | Chinese, English, Germany, Japanese, Korea etc. 24 languages | |||
| OTA | Support OTA update | |||

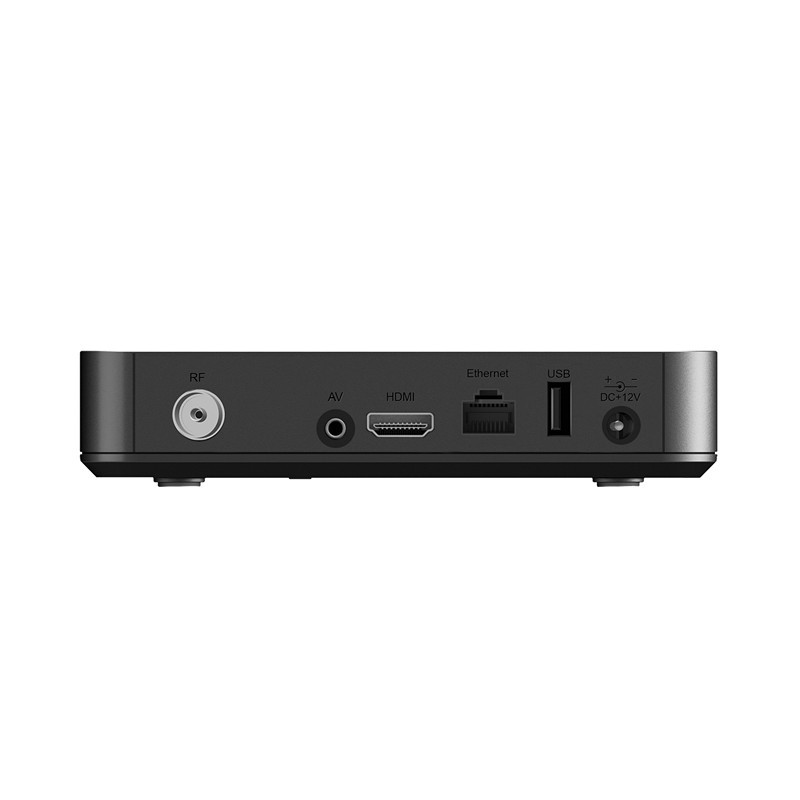

| Port Specifications | ||||
| Port | DVB-T/T2 single tuner RF connectors:-Input RF connector, female, 75 ohm IEC61169-2, DVB-C Compliant |
|||
| 1* HDTV 2.1 Dynamic HDR 4Kx2K&60 max resolution output, HDCP 2.2 | ||||
| 1* USB 2.0 | ||||
| 1* AV CVBS&L/R output 3.5mm | ||||
| 1* RJ45 LAN | ||||
| 1* DC 12V/1A | ||||

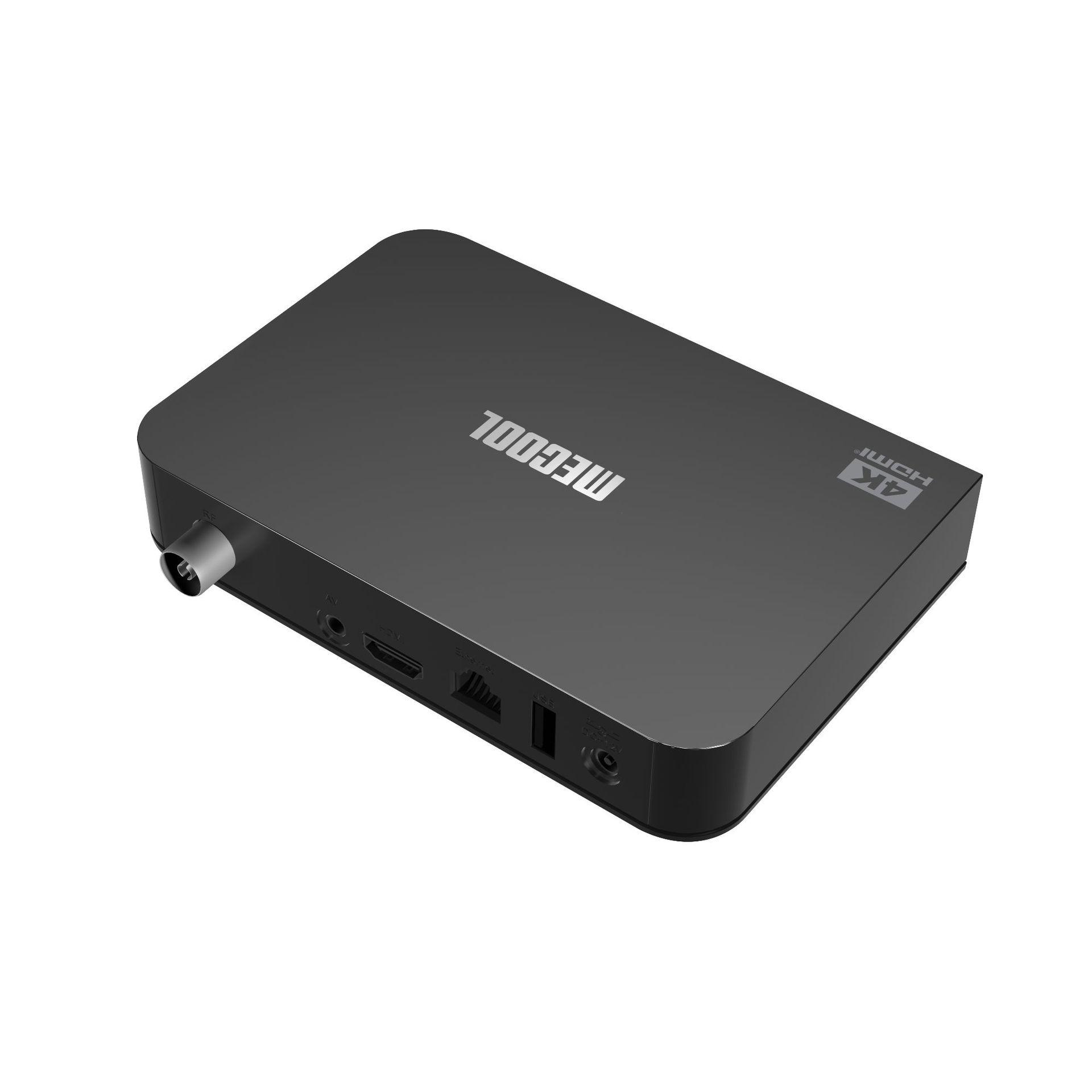

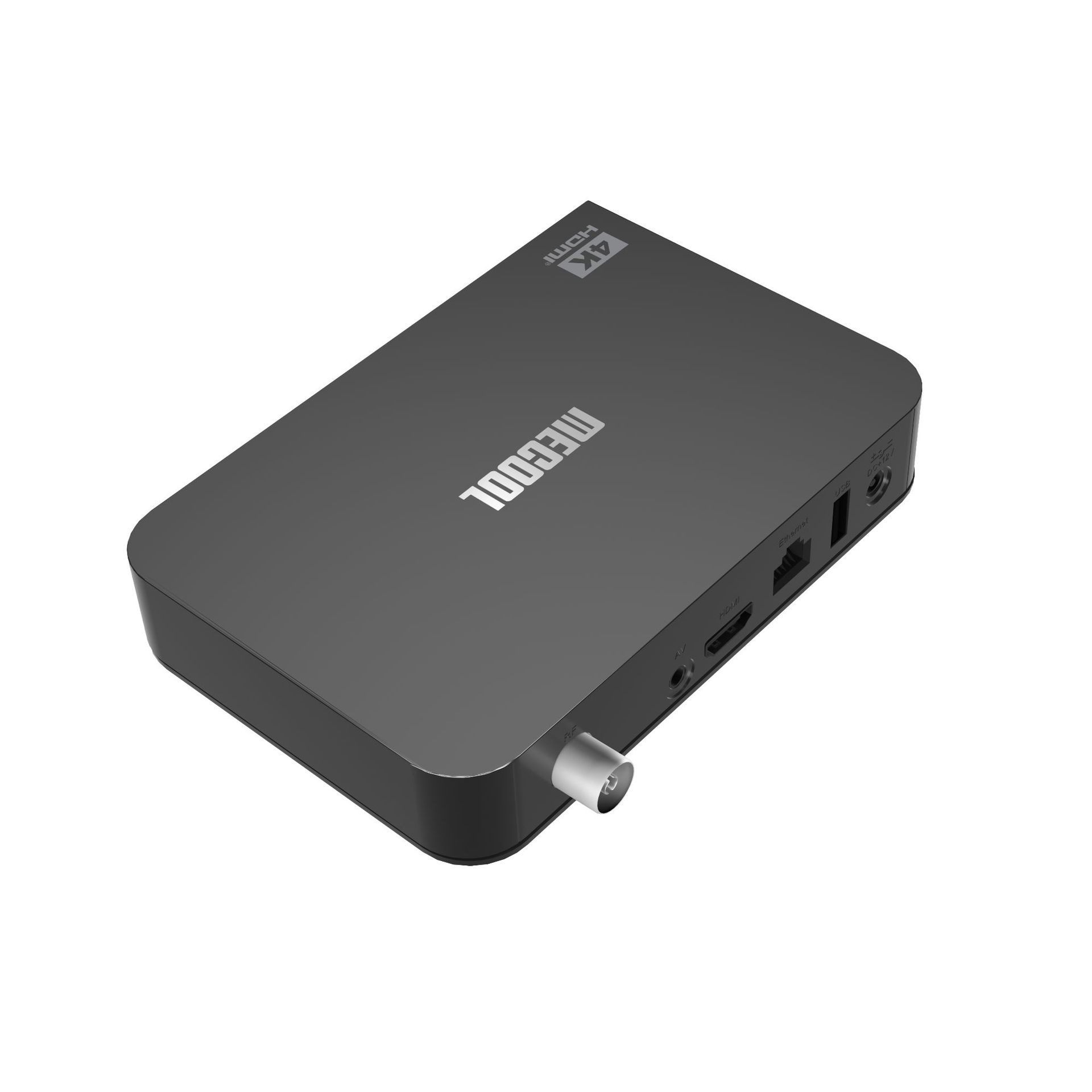

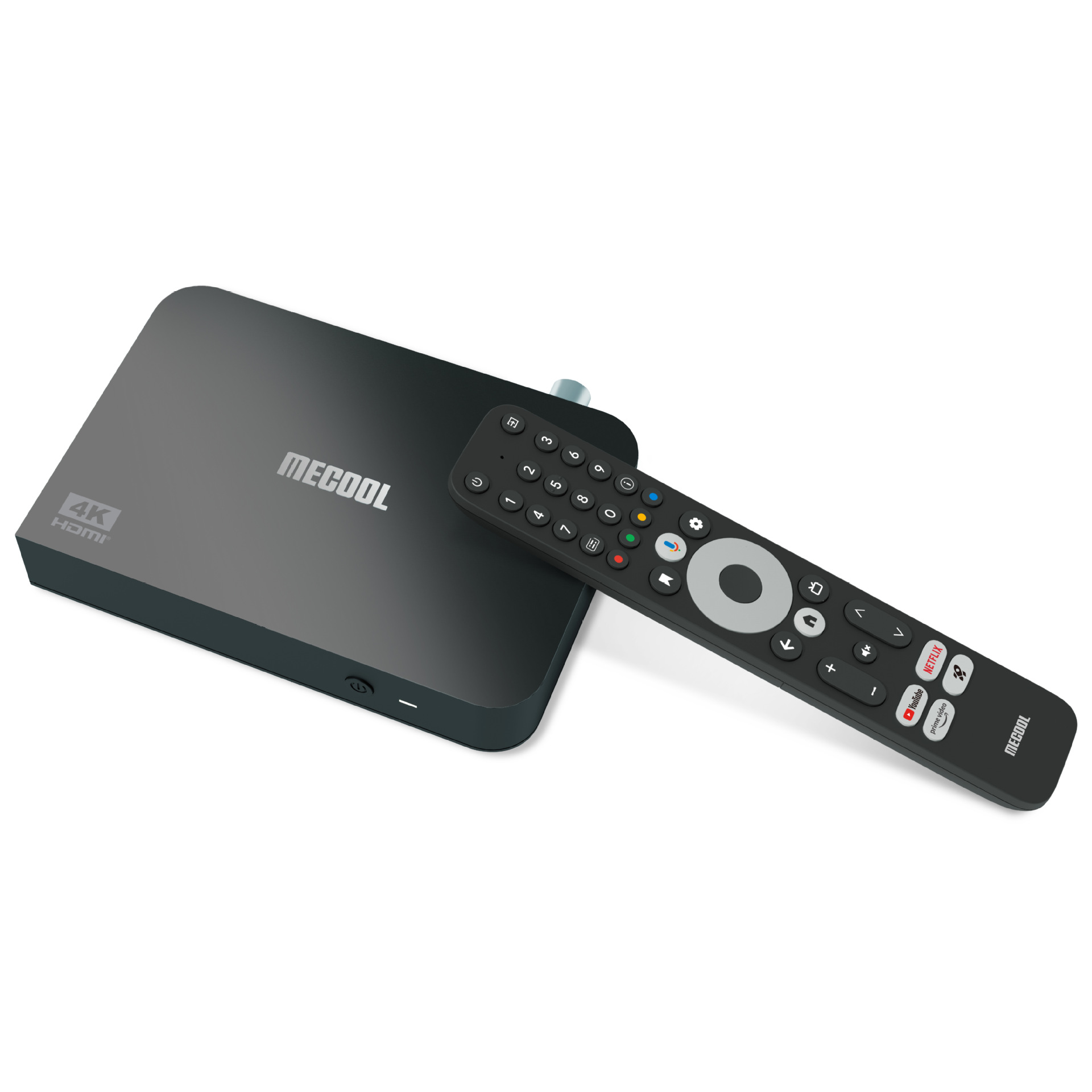

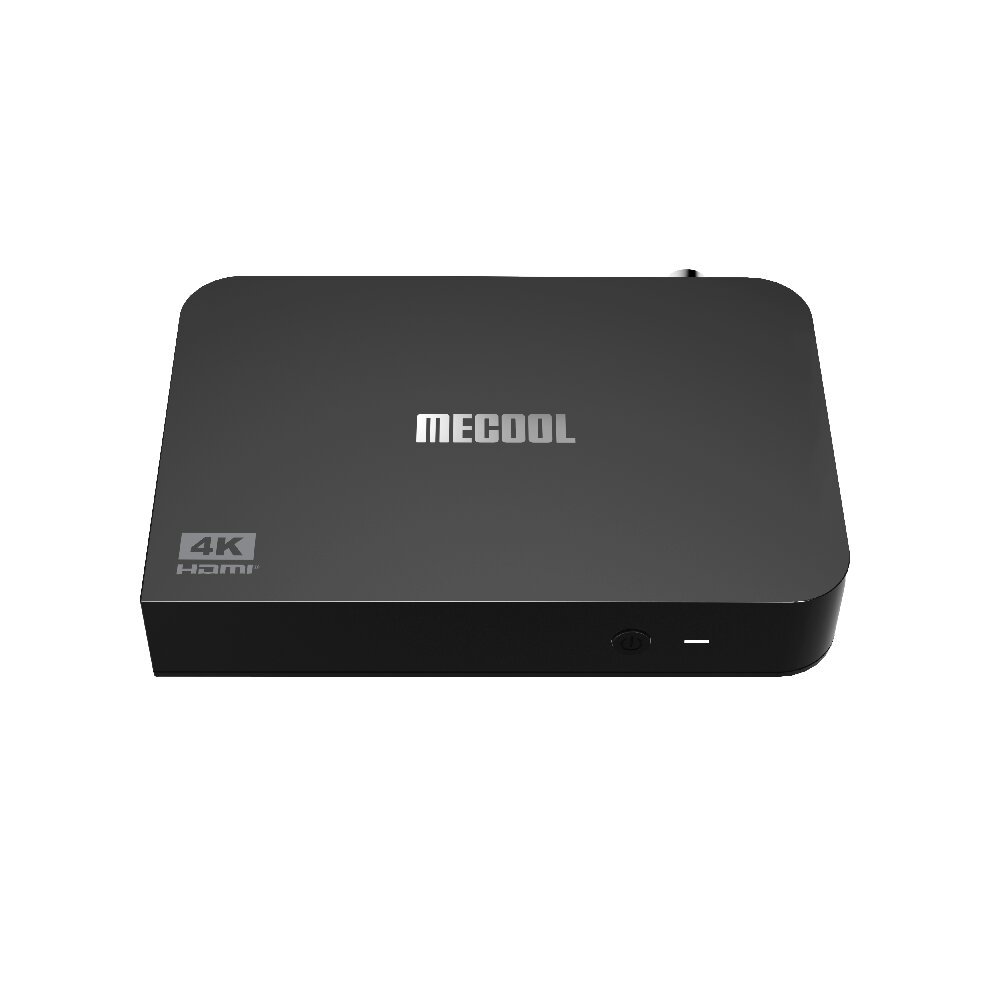

KT2 Product Pictures:
