Google Certified KICKPI KP1 androidtv TV box with Quad Core S905Y4 64-bit chip 2GB DDR4 32GB eMMC 2.4G 5G 2T2R dual band WiFi bluetooth 5.0 Dolby Audio and Dolby Digital Plus support 4K 60fps AV1 decoding android 11 ATV OS.
KICKPI KP1 Product Specifications:
Hardware Specifications |
|||
| CPU | Amlogic S905Y4-B ARM Quad 64-bit Cortex-A35 | ||
| DRAM | DDR4 2GB | ||
| Flash | eMMC 32GB | ||
| Graphics | ARM Mali-G31 MP2 GPU/OpenGL ES3.2, Vulkan1.1 and OpenCL2.0 | ||
| HDR | HDR 10, HLG, HDR 10+ | ||

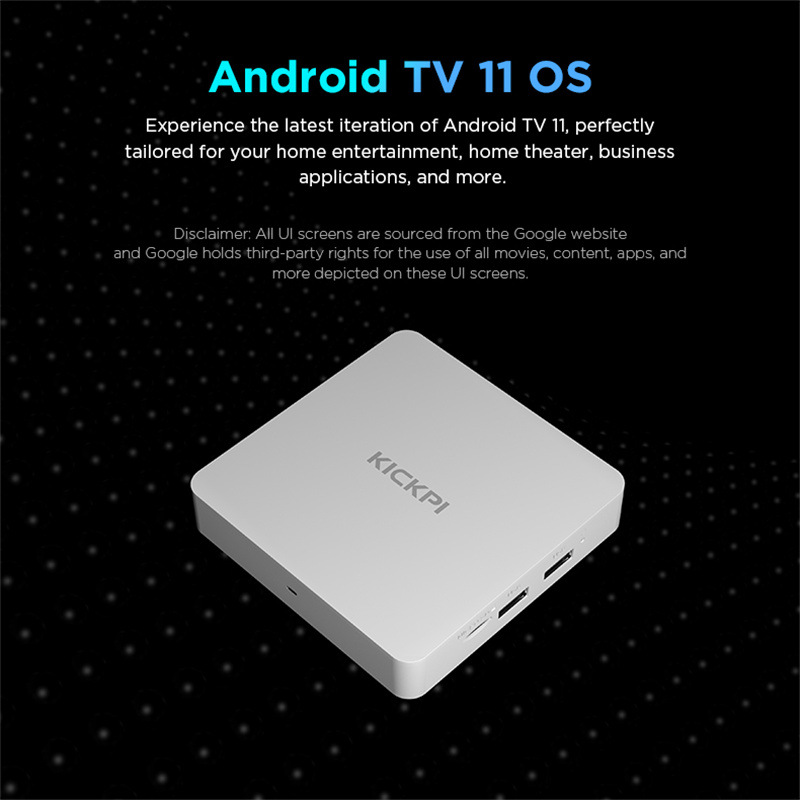

| OS | Android11 ATV OS | ||
| DRM | Widevine, Playready | ||
| Resolution | 4K@60fps | ||
| Ethernet | RJ45 Interface 10M/100M adaptive | ||
| Wi-Fi | 2 x 2 MINO Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac | ||
| BT | 5.0 | ||
| Video Codes | ·AV1 MP-10@L5.1 up to 4K*2K@60fps | ||
| ·VP9 Profile-2 up to 4K*2K@60fps | |||
| ·H.265/HEVC MP-10@L5.1 up to 4K*2K@60fps | |||
| ·H.264/AVC HP@L5.1 up to 4K*2K@30fps | |||
| ·MPEG-2 MP/HL up to 1080P@60fps | |||
| ·Other codecs on request | |||
| Audio Codes | ·AAC-LC & AAC-HE | ||
| ·MPEG-1 Layers 1,2,3 | |||
| ·Dolby Audio and Dolby Digital Plus | |||
| ·Other codecs on request | |||
| Container | *.mkv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.mp3 and *.ogg | ||
| Power Supply | External 12V/1A(or 12V/1.5A) | ||
| Power Consumption | 12W Max | ||
| Operating Temperature | 0℃ to 40℃ | ||
| Operating Humidity | 5%-85% Non-condensing | ||
| Size | 110mm x 110mm x 26mm | ||
| Digital Video | HDMI 2.0 with HDCP | ||
| Micro TF | Support | ||
| Network | RJ45 LAN | ||
| Peripheral Interface | 2 x USB2.0 | ||
| Power Interface | DC in | ||
| Dolby Audio | Support | ||

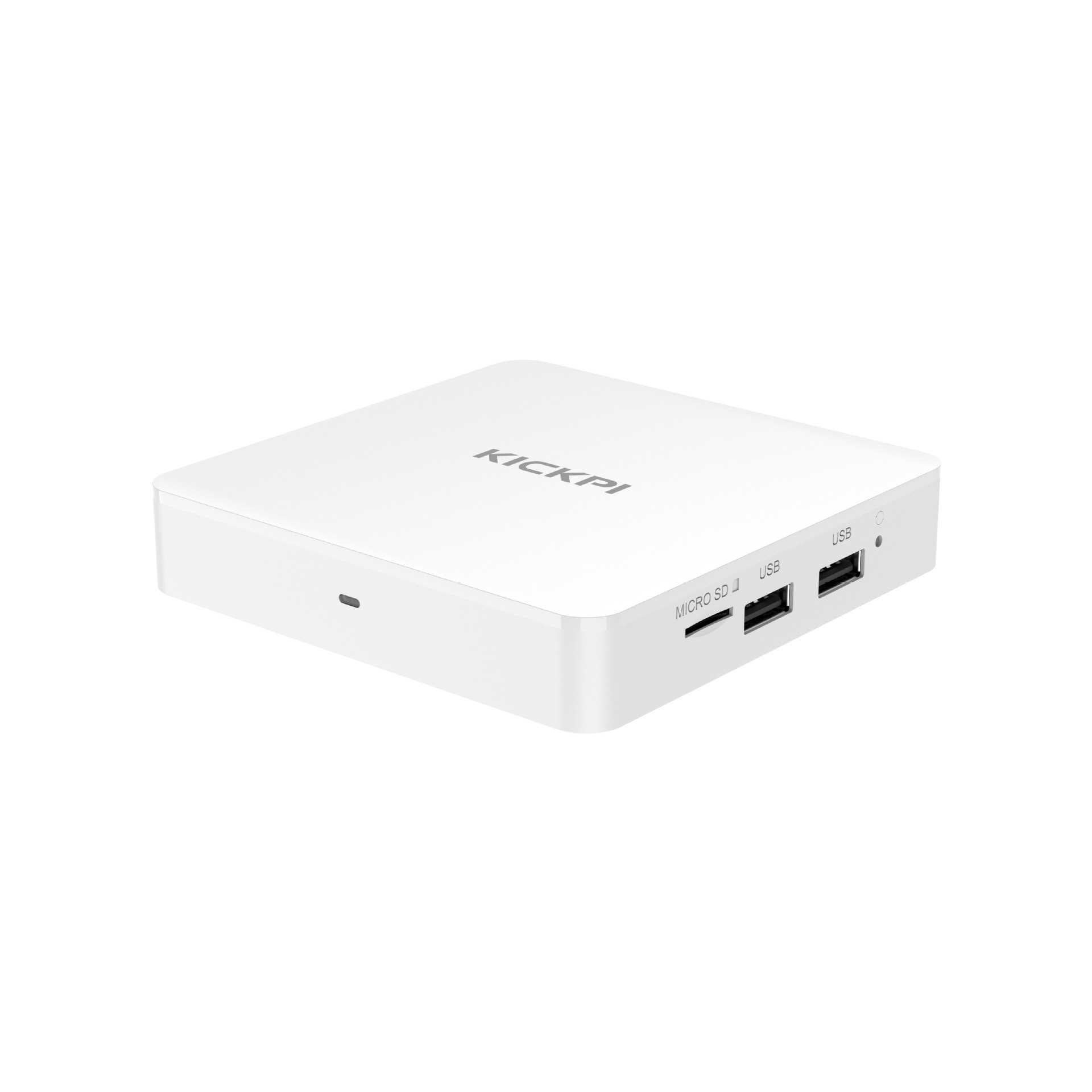

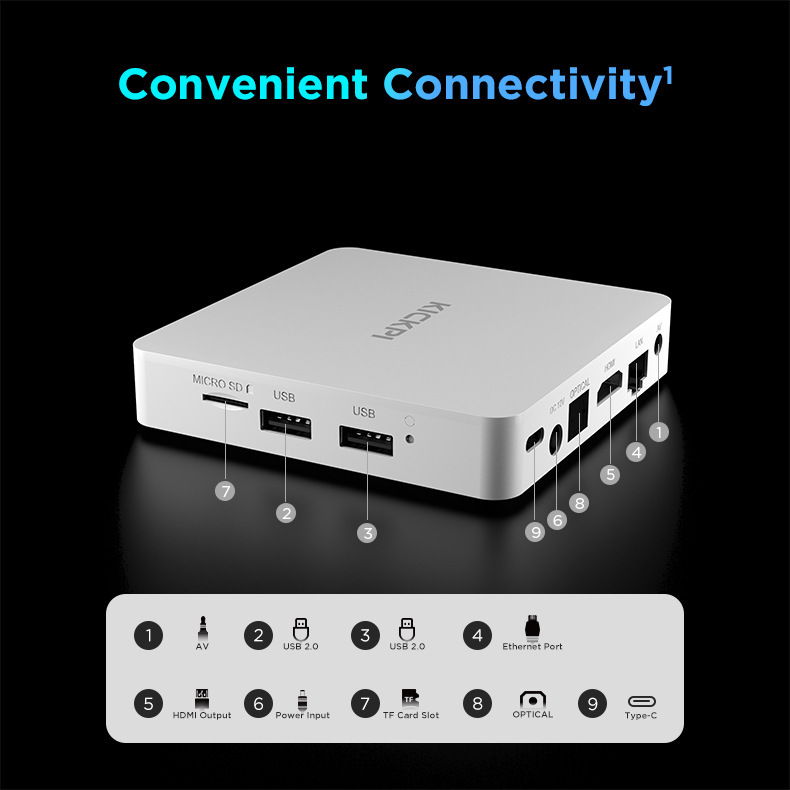

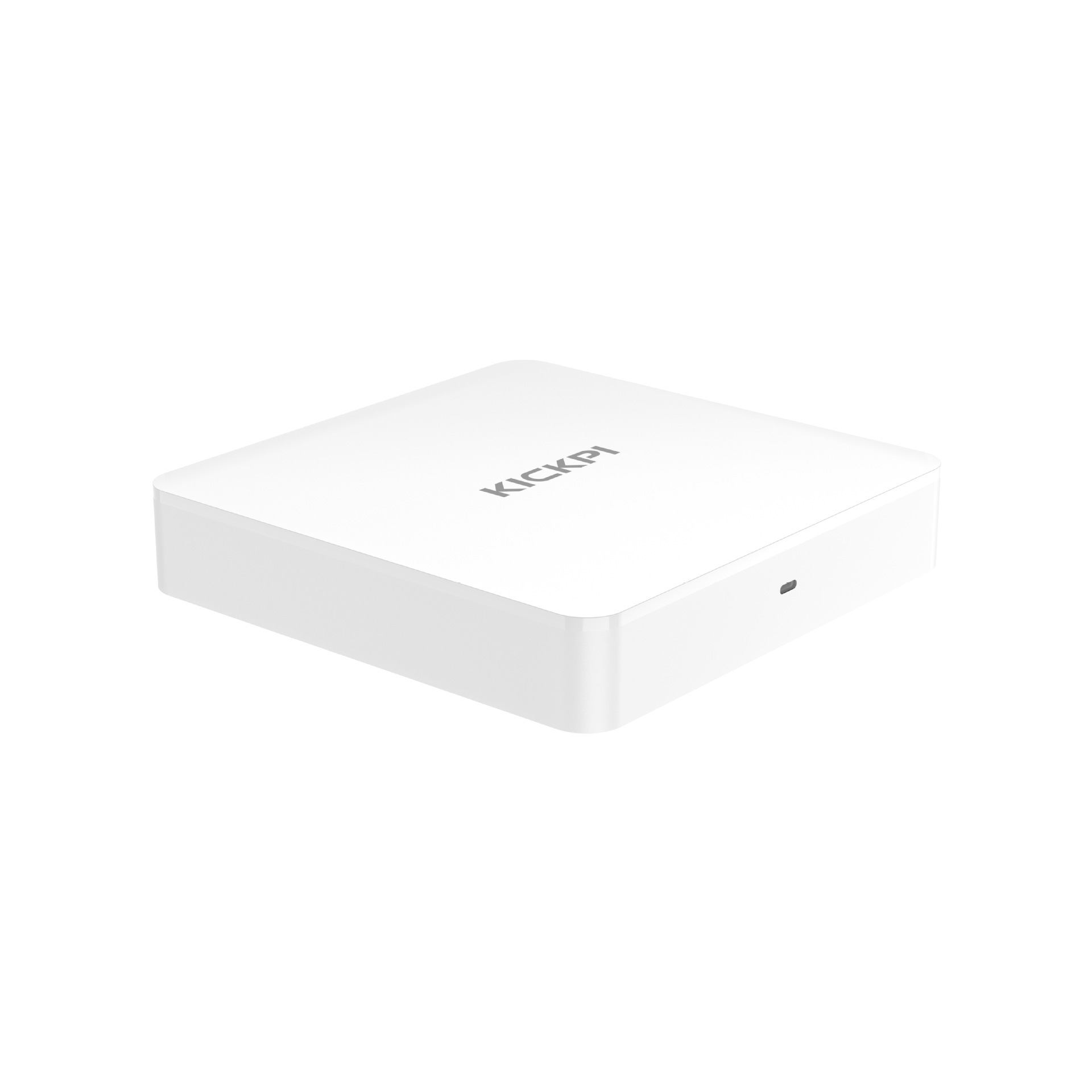

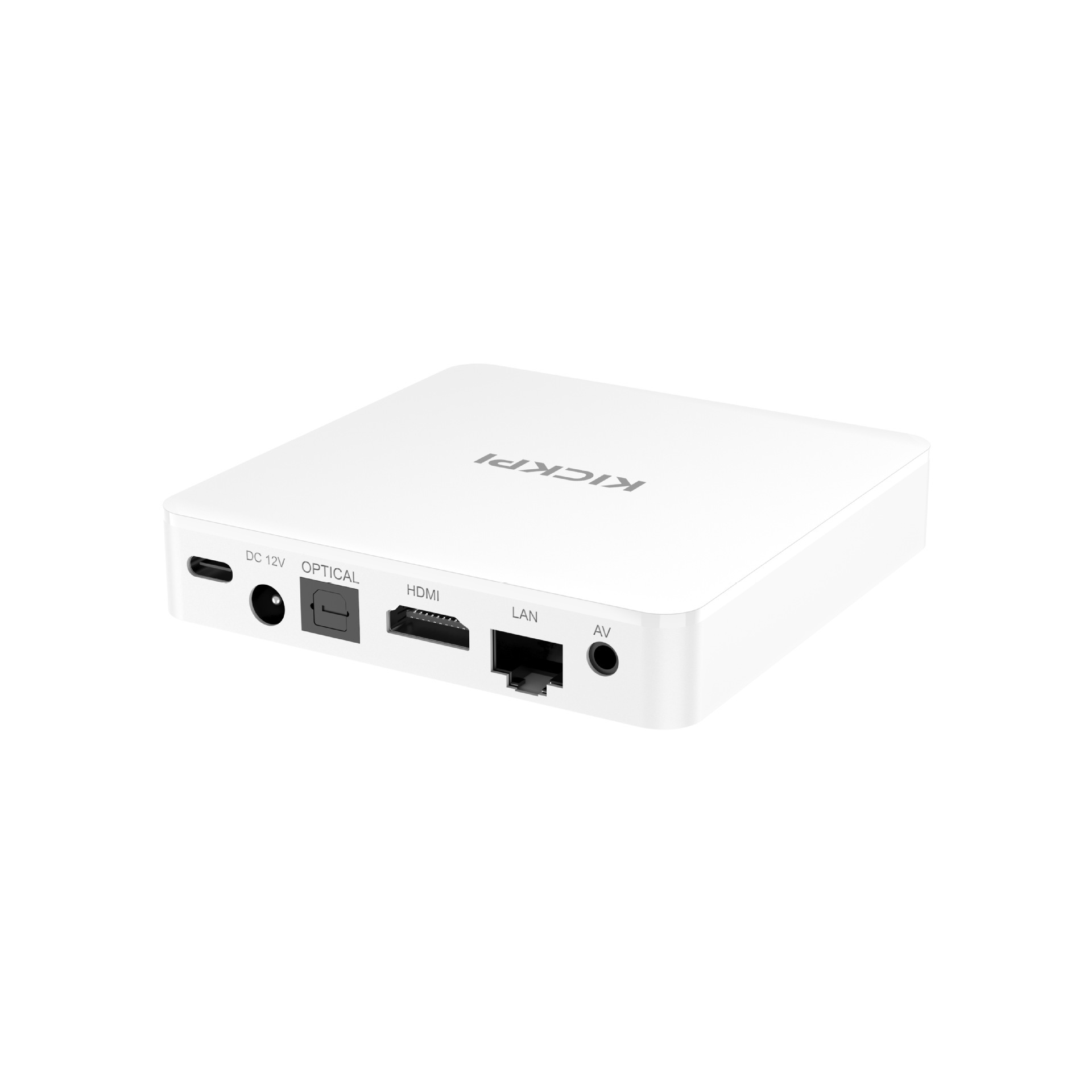

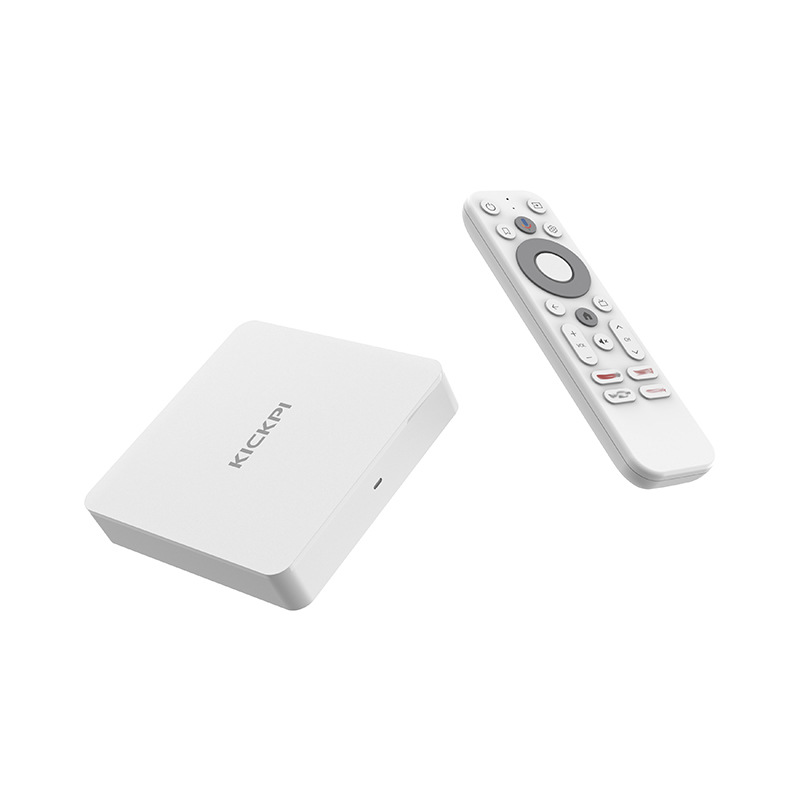

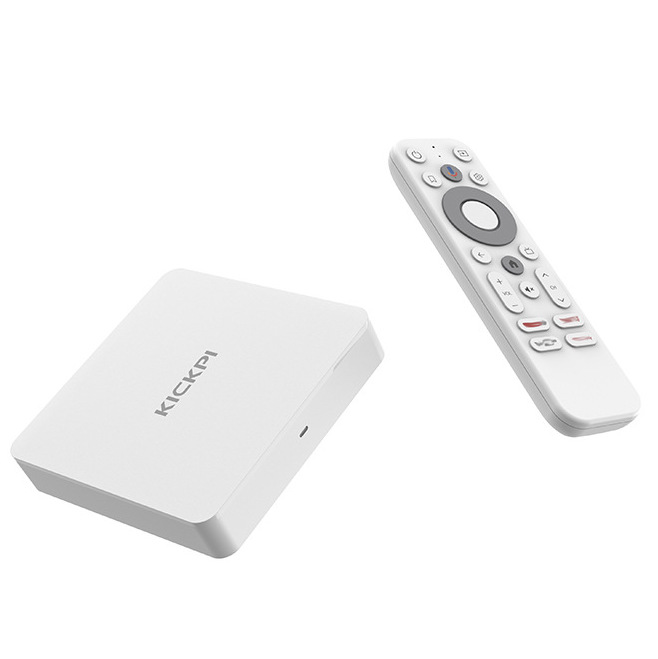

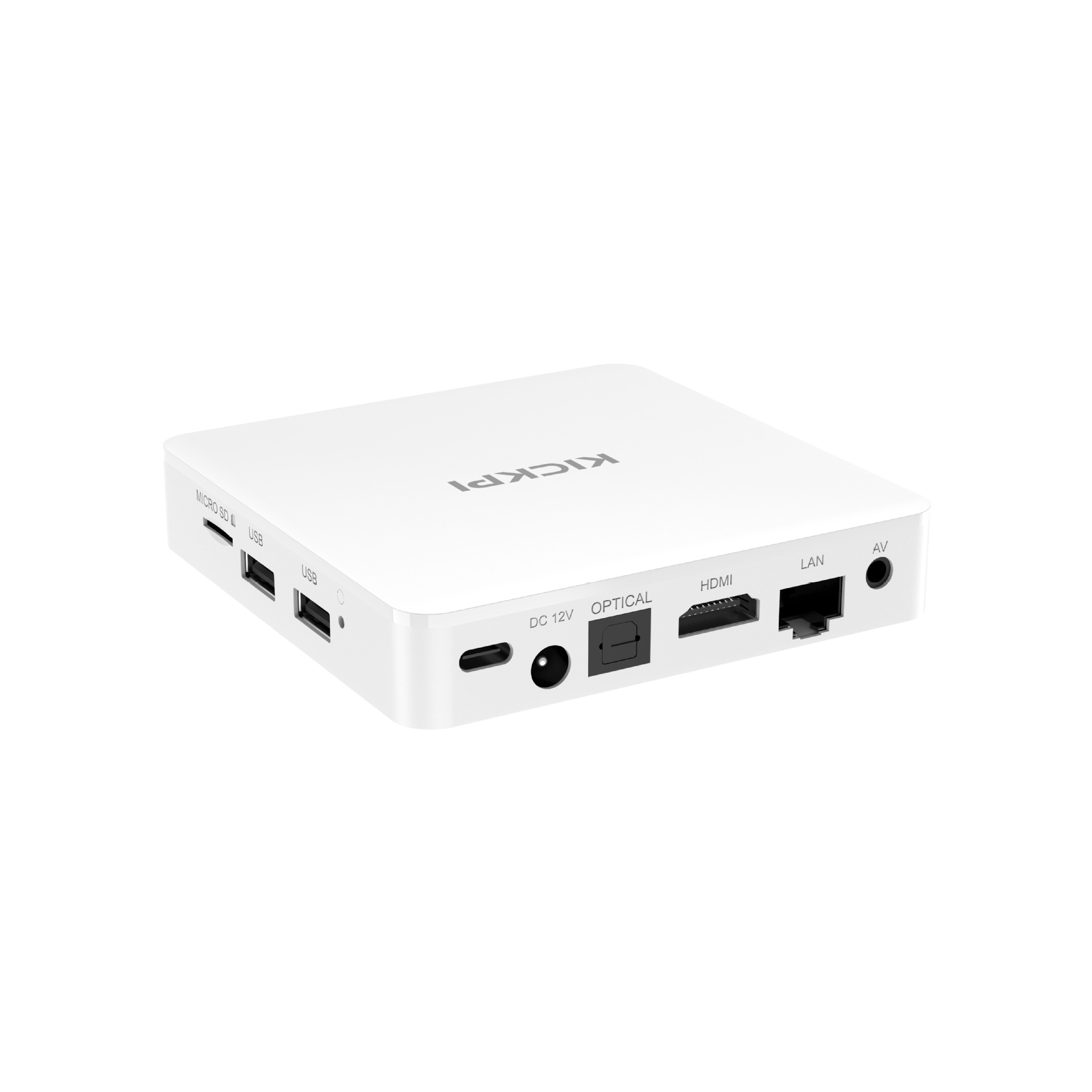

KP1 Product Pictures:

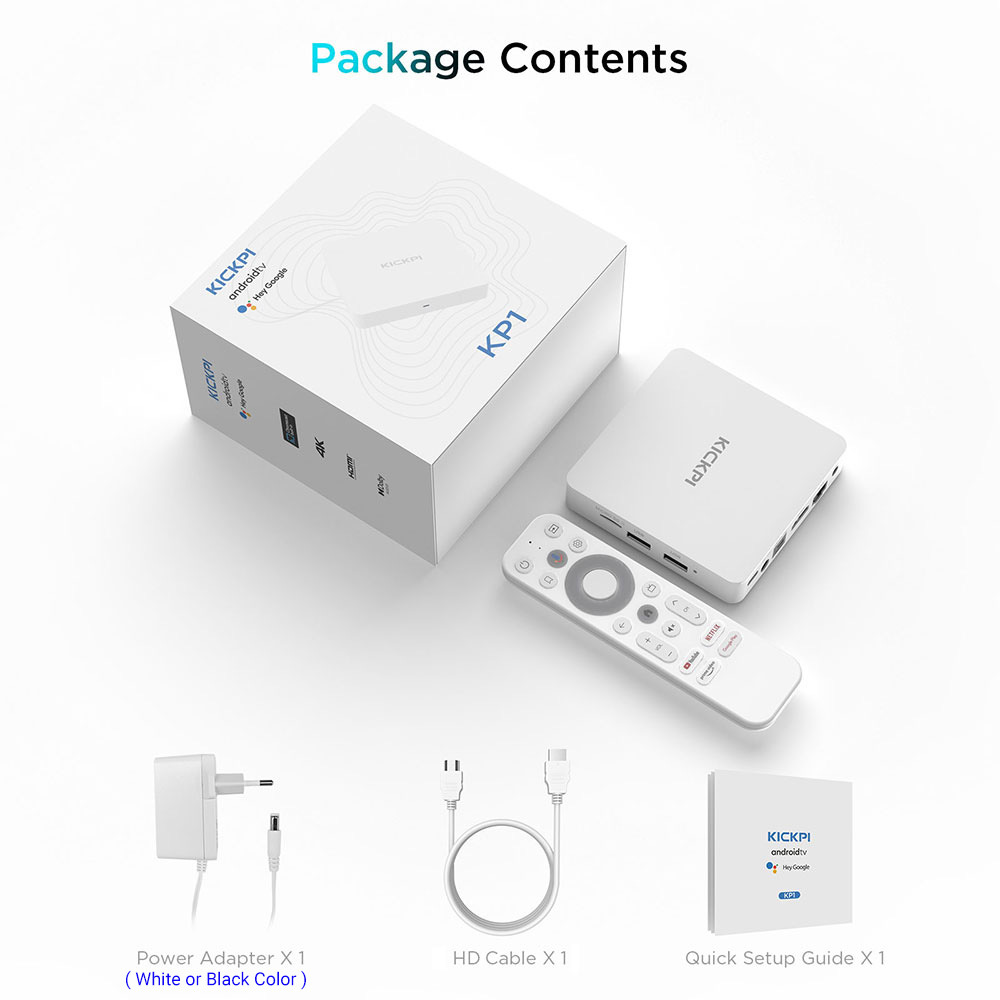

KICKPI KP1 Product Package Contents:
